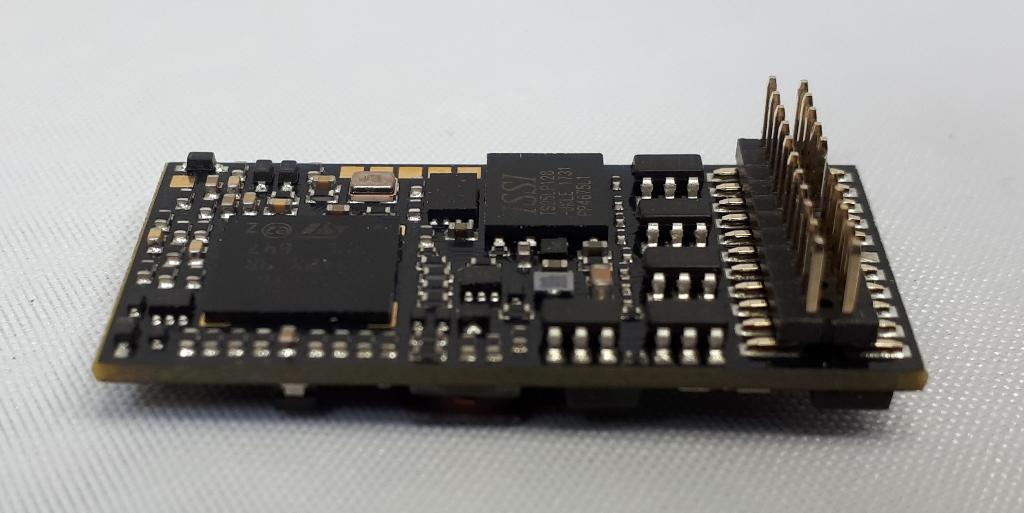

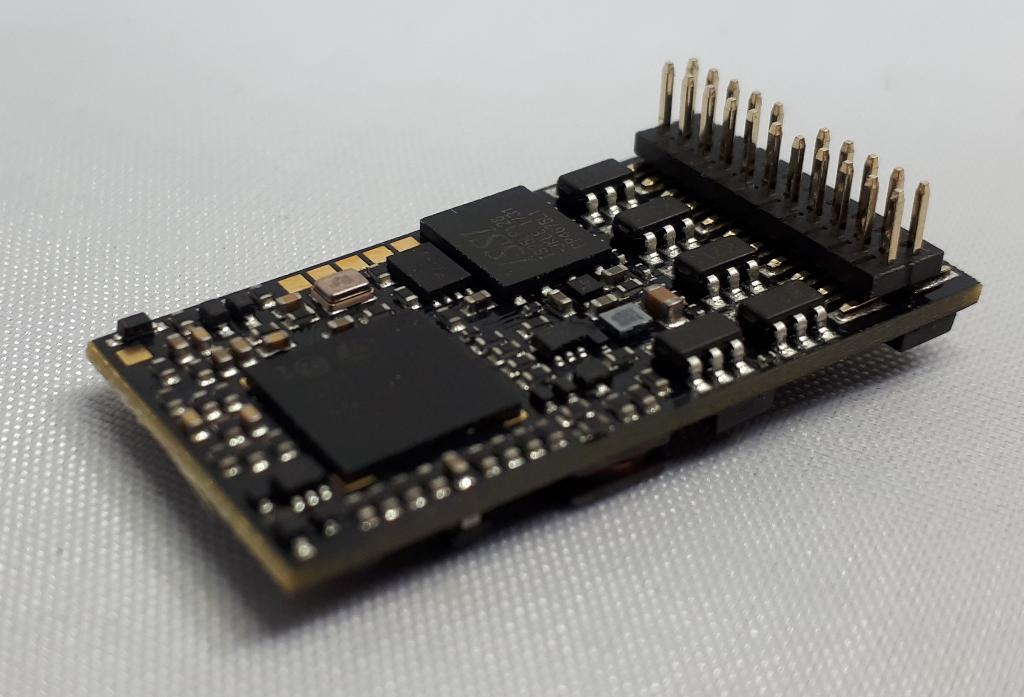

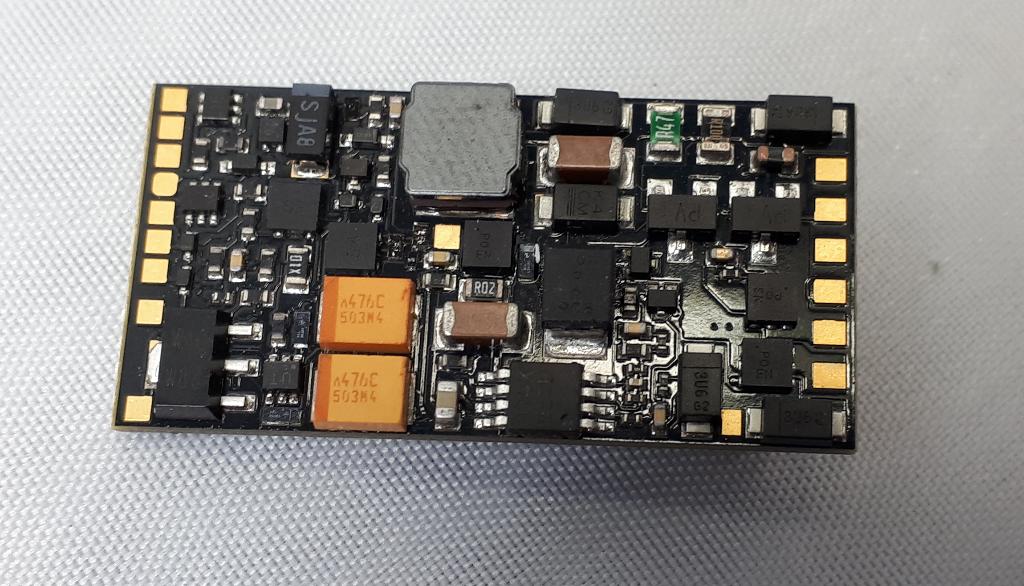

Zimo MS450 ('R' 8pin on harness and PluX22 direct plug-in) Sound Decoder

MS450

30x15x4mm 1.2A continuous / 2.5A peak 16V direct stay-alive (including SuperCaps and Tantalums) 21pin direct plug-in 3W audio / 10 Functions With native 16V stay-alive supplied with example capacitor (normally 1000uF 16V)

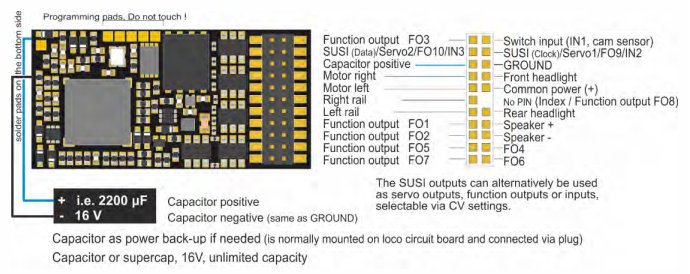

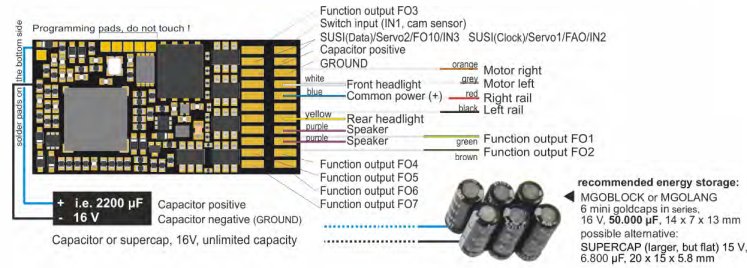

MS450R 'R' Version 8pin plug on wired harness MS450P22 'P22' Version PluX22 direct plug-in

The MS450 sound decoder from Zimo is their flagship sound decoder for the MS range, packed with all the features you have come to expect from Zimo, plus 10 AUX function outputs for lighting, smoke generators, auto-couplings etc., and 'smart stop' energy storage facilities built-in (just add an external capacitor to take advantage).

Supplied with the MS450 is normally a 1000uF/16V electrolytic capacitor - worth connecting, but also worth considering an upgrade to a SuperCap (6800uF or 17000uF) which can be connected directly instead.

Technical Specification

• 3W audio power
• 4ohm - 8ohm speakers supported
• 16-channel output
• 11, 22 and 44 khz sounds supported
• 1.2A continuous motor output / 2.5A peak for short periods
• 10 AUX function outputs, max combined 0.8A
• 2 logic level outputs e.g. servo control / SUSI
• Energy storage support (16V direct) with Smart Stop
• 128 MBit memory
• Railcom
• DCC, DC-Analog, MM, AC-Analog, Mfx
