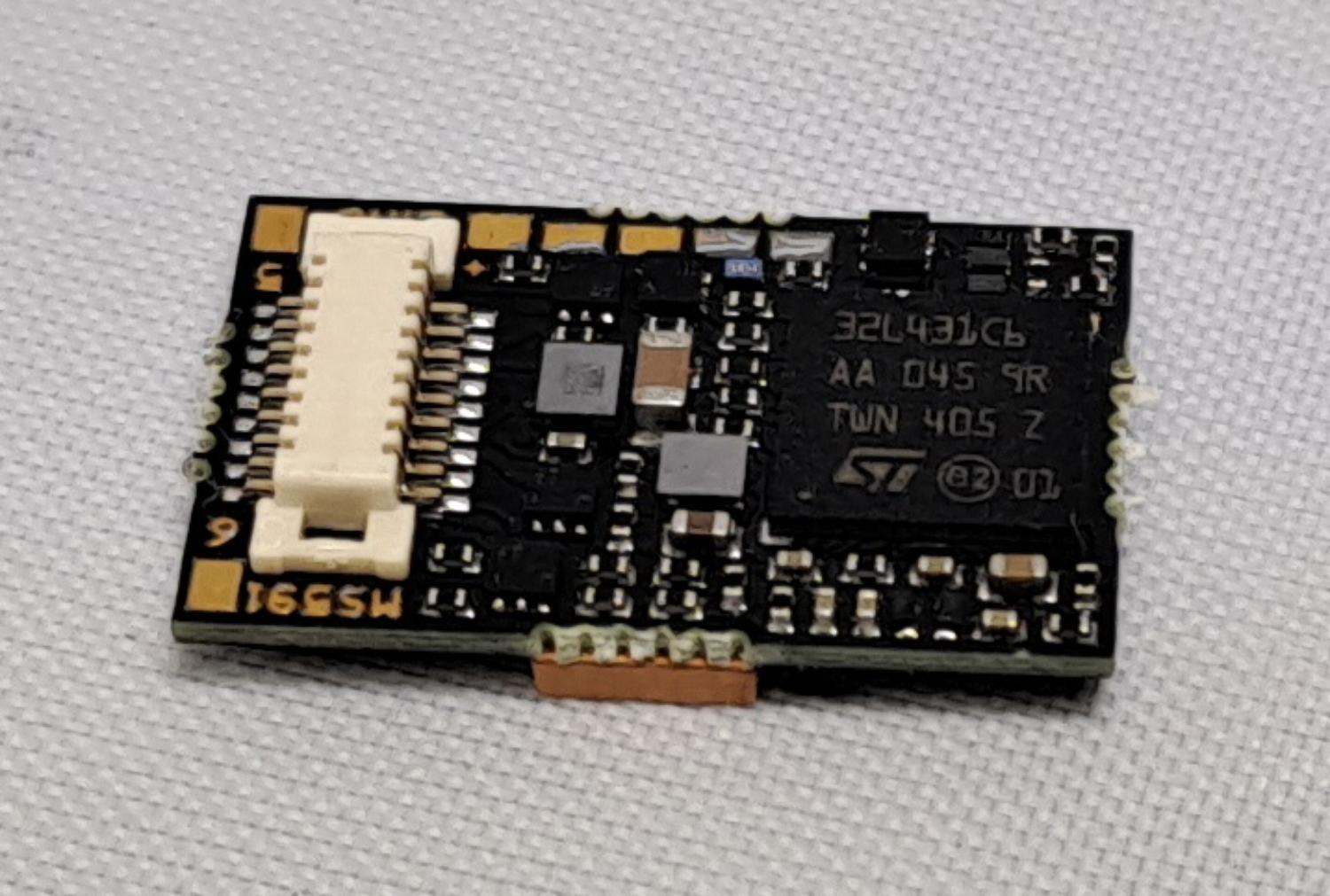

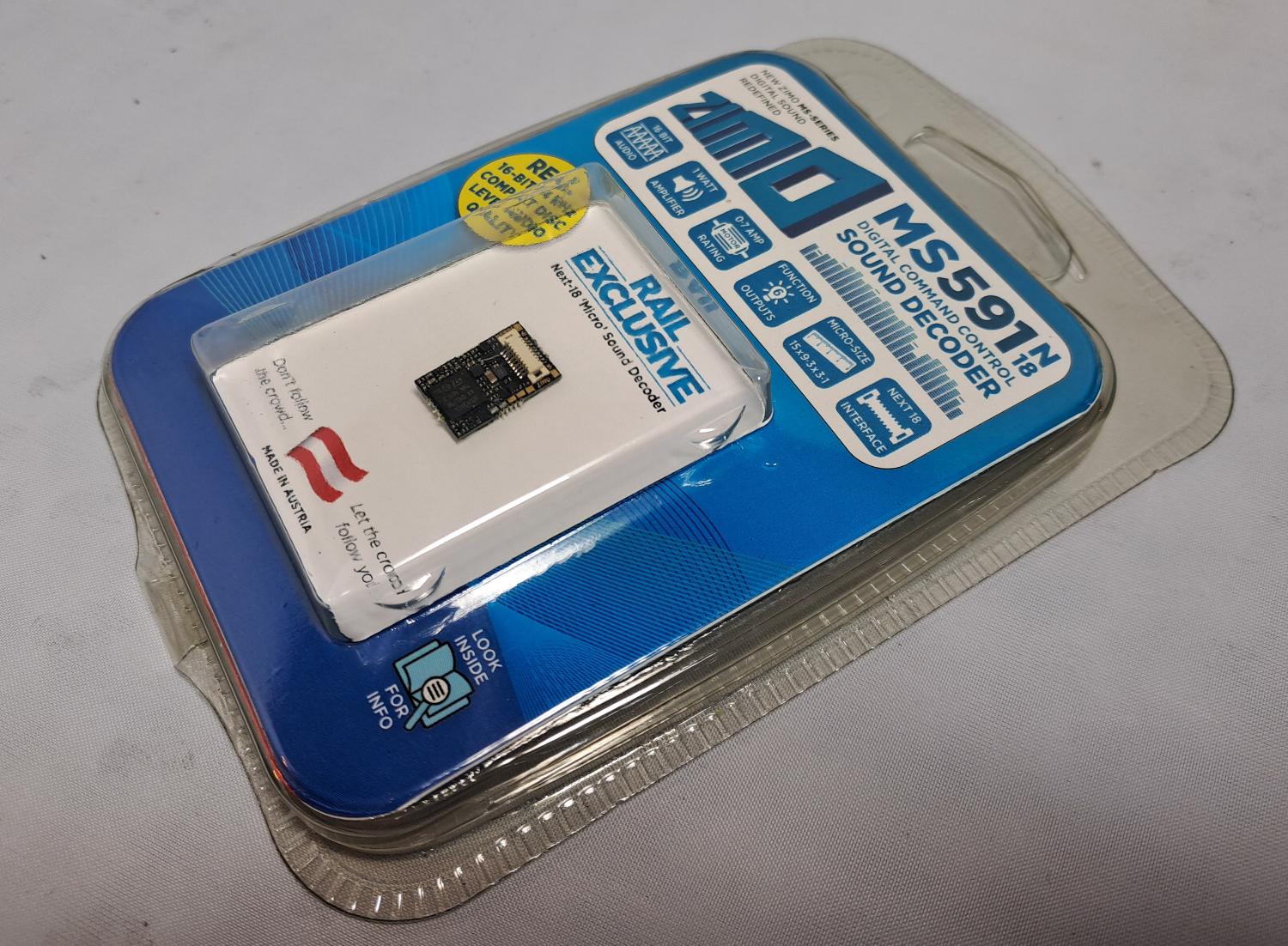

Zimo MS591 Sound Decoder

15x9.3x3.1mm 0.7A continuous / 1.5A peak 16V stay-alive via LifeLink/SACC16 Next18 direct plug-in 1W audio at 8 ohm 6 Functions

Variants / Sub-Products

MS591

× Cancel

Next18 direct plug-in

Description

The MS591 sound decoder from Zimo is their tiny Next18 small-scale sound decoders for the MS range, packed with all the features you have come to expect from Zimo, plus 6 AUX function outputs for lighting, smoke generators, auto-couplings etc. (4 via Next18 connection, 2 via solder pads, and a further 2 as Logic Level on the Next18 connector)

The MS591 can have unlimited stay-alive attached via a LifeLink or SACC16 connector (on solder pads), but not directly, or a STACO kit can be used.

Technical Specification

• 1W audio power
• 8ohm speakers supported
• 16-channel output
• 11, 22 and 44 khz sounds supported
• 0.7A continuous motor output / 1.5A peak for short periods
• 6 AUX function outputs, max combined 0.5A
• 2 logic level outputs e.g. servo control / SUSI
• Energy storage support unlimited via LifeLink/SACC16, solder pads
• 128 MBit memory
• Railcom
• DCC, DC-Analog, MM, AC-Analog (NOTE: Mfx is NOT supported in the MS591)
