Dapol N Gauge A3 with MS sound

Dapol N Gauge A3 Flying Scotsman with Zimo MS sound and stay-alive

Kit: MS480; SugarCube6; 2x 470uF Flat Tantalums

A similar approach to the MX648 installation, this approach uses the newer MS480 decoder, but this time with some stay-alive added too.

Example 1 Example 1

Example 1

Remove the 6pin socket PCB and mounts to create space behind the motor for the speaker and Tantalum capacitors.

Example 1 Example 1

The screw mounts for the model's PCB are snip flat.

Example 1

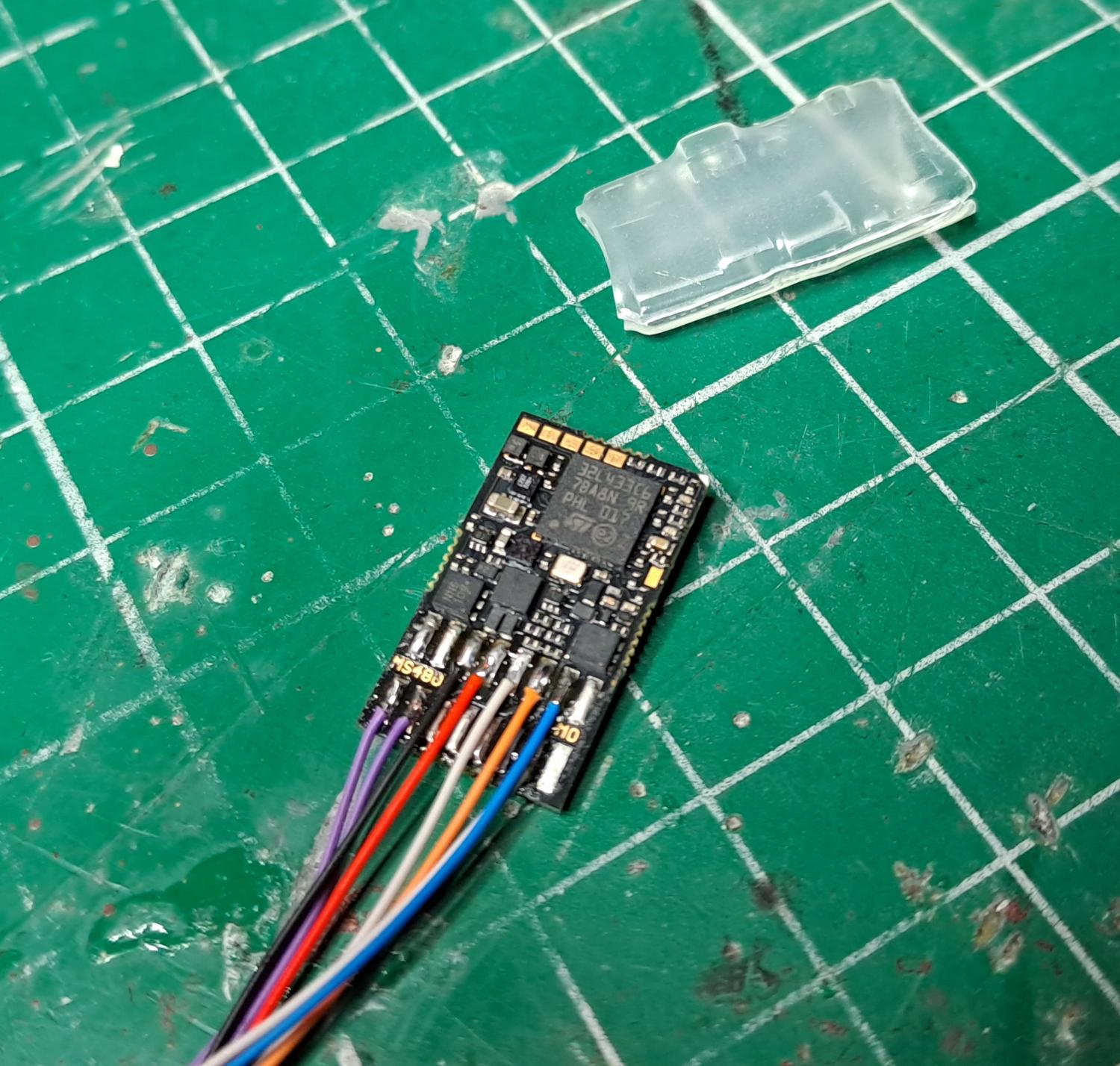

The sleeve is removed from the MS480, unwanted wires removed, and the wires needed are replaced with finer ESU decoder wire.

Example 1 Example 1

Decoder covered in Kapton and stuck loosely on top of the motor with double-sided tape, ensuring it cannot foul on the spinning part of the motor.

Example 1 Example 1

SugarCube6 speaker is superglued into place and the pair of 470uF Flat Tantalum capacitors are wired in for the stay-alive. Be especially careful soldering the motor wires onto the terminals, as too much heat will cause the terminals to pop-out!

Example 1 Example 1

Example 1

All placed carefully in their final positions, we chop out the original plastic coal load and build a new one on top using black electrical tape, a little BlackTack and some crushed lump coal scenic scatter.

Example 1 Example 1

All back together, sounding loud, and running very nicely with the stay-alive.

Example 1 Example 1

Example 1 Example 1
