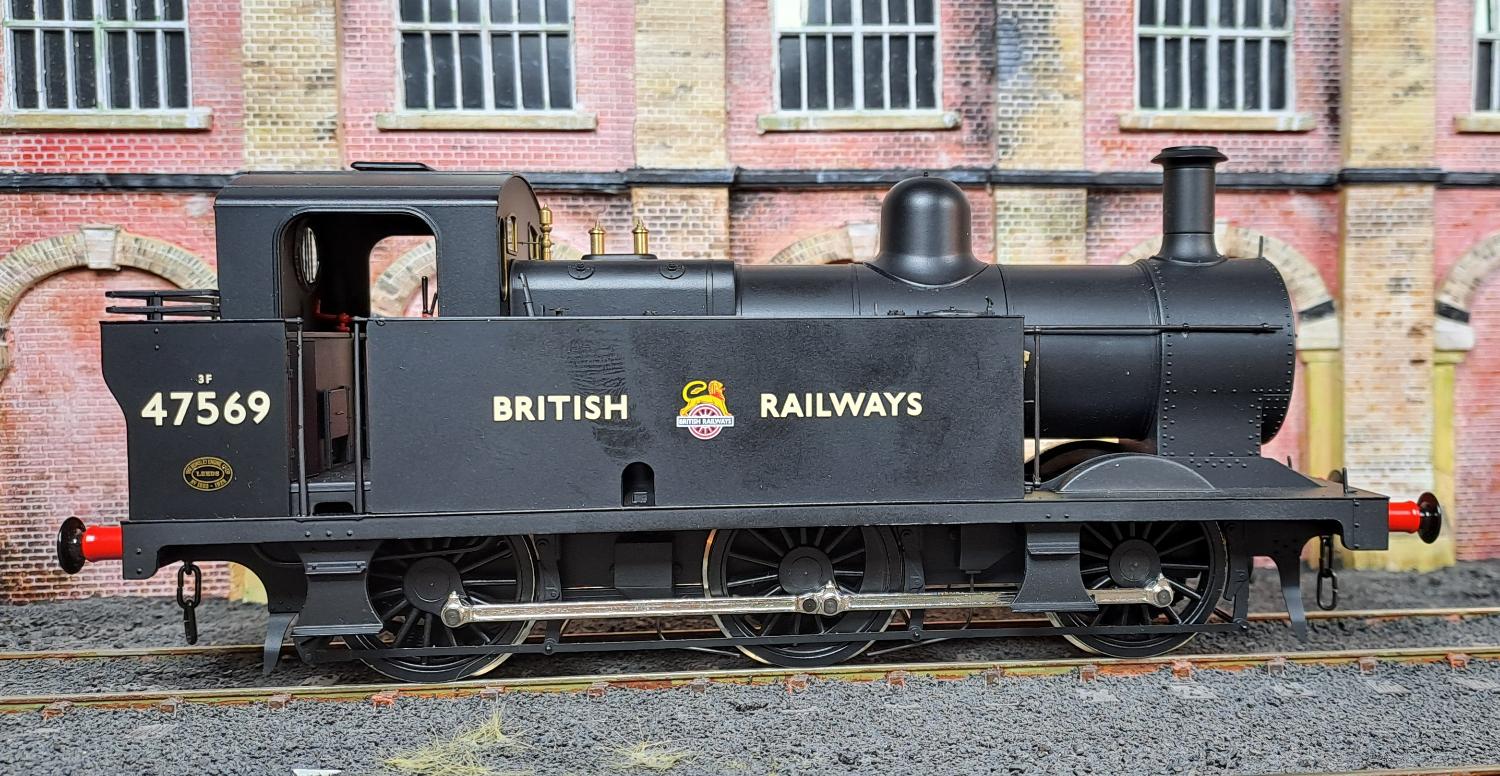

Dapol O Gauge 3F Jinty with MS Sound

Kit: MS440; RE BoomBox 40x20x10; MGOBLOCK

Apart from producing a new guide for this old favourite, we also tackle the issue of those massive resistors on the Jinty's PCB which get in the way of being able to push down a sound decoder properly - this photo below shows what we mean, and it isn't pretty!

Our solution is simple, if a little crude, but it does the job... carefully snip off the resistors leaving a little bit of the leg on either side so we can reattach them wire some short lengths of wire instead...

Protect in Kapton and secure down with a little BlackTack. We just go wtih the sample 1000uF capacitor for stay-alive on this Jinty, but there is plenty of room so you could use a MGOBLOCK or MGOLANG just as easily if you want a long stay-alive.

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
