Lionheart O gauge Small Prairie

Lionheart/Dapol O gauge Small Praire 45XX

Kit: MS440D; 6x MiniGoldCaps

Very excited about Lionheart's new Small Prairie... presentation excellent, packaging solid, loco in perfect condition... good start...

Example 1 Example 1

Example 1 Example 1

Example 1 Example 1

A quick test on DC has it running smooth and quiet too.

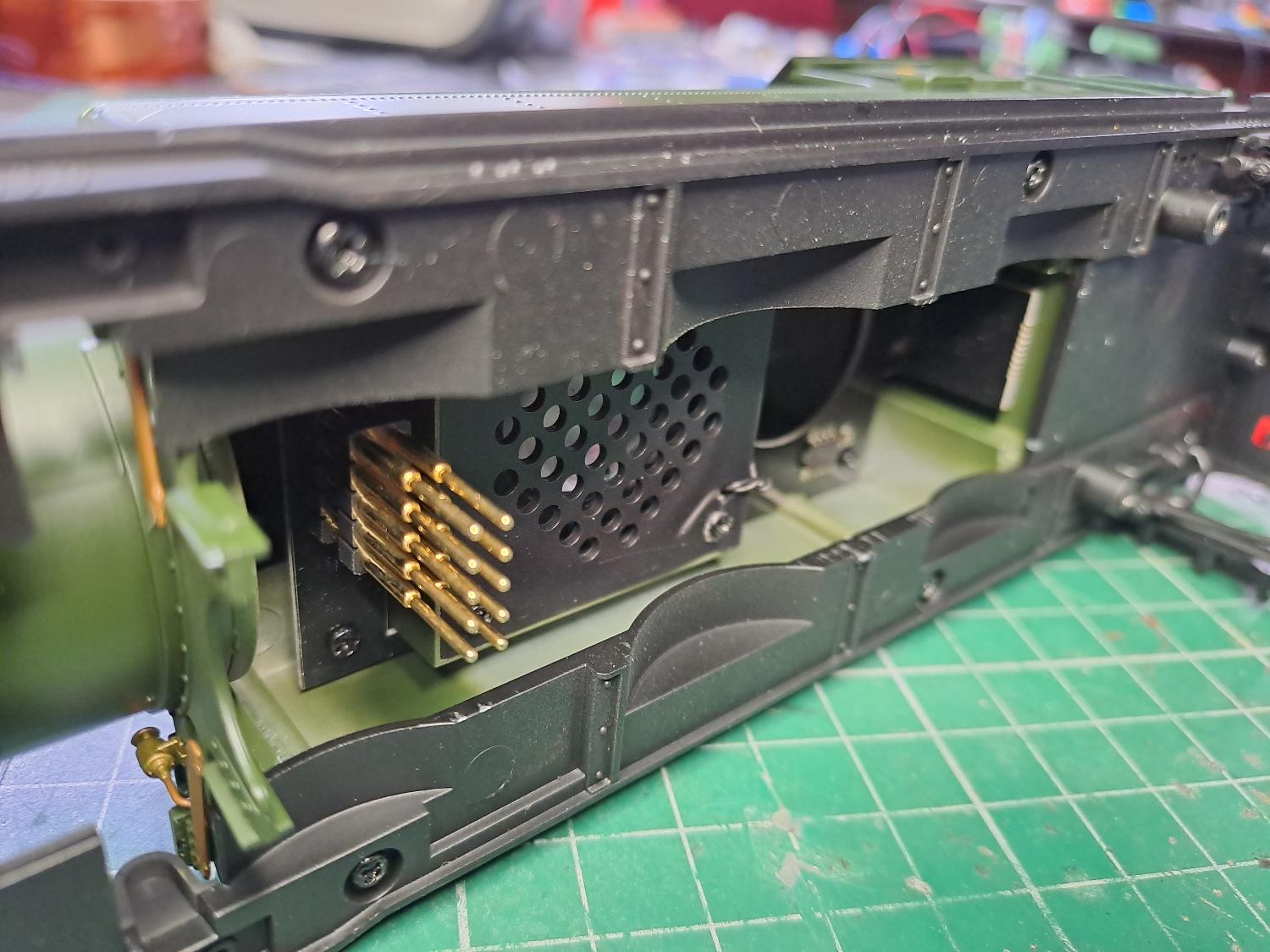

Body comes off easily, after removing 3 screws. Motor is compact and vertical. 21pin PCB easily accessible on the chassis. All other connections are made by a series of sprung pins that make contact when the body is attached. This includes speaker and firebox glow light, so those aspects cannot be tested without the body.

Example 1 Example 1

The factory DCC blanking plate has some capacitors on board, which is great design - no need to worry about how to remove them when going to DCC.

Example 1 Example 1

The speaker is a big-magnet round speaker in a sensible box in the body.

Example 1 Example 1

A 21pin MS440D (or C would be fine too) is all that is needed to convert to DCC sound.

Example 1

However, we like stay-alive, so consider 2 options... our good old favourite 17000uF SuperCap, which will fit snuggly up behind the motor (approx 2 seconds backup time), or an array of mini GoldCaps (6x 2.7V 0.3F giving 16.2V total, and a backup time of around 10 seconds). We opt for the GoldCaps this time.

Example 1 Example 1

This photo shows where the SuperCap would go if we had gone with that option.

Example 1

The 6 GoldCaps are assembled and joined in series. A little fiddly, but easy enough.

Example 1 Example 1

Attach the decoder's stay-alive wires to each end of the series array. No extra components required since the MS440's stay-alive connection is designed for a 16V capacitor, of unlimited value.

Example 1 Example 1

Wrap the caps in Kapton for protection.

Example 1 Example 1

A little BlackTack is used to hold the caps in place just inside from where the motor will slot up.

Example 1 Example 1

Assembled again, making sure not to pinch the stay-alive wires on anything. The output from the factory speaker is excellent, so absolutely no need to consider an upgrade there. Very simple conversion, and great results.

CV#267=125 seemed about right on this model for the chuff rate on an MS440.

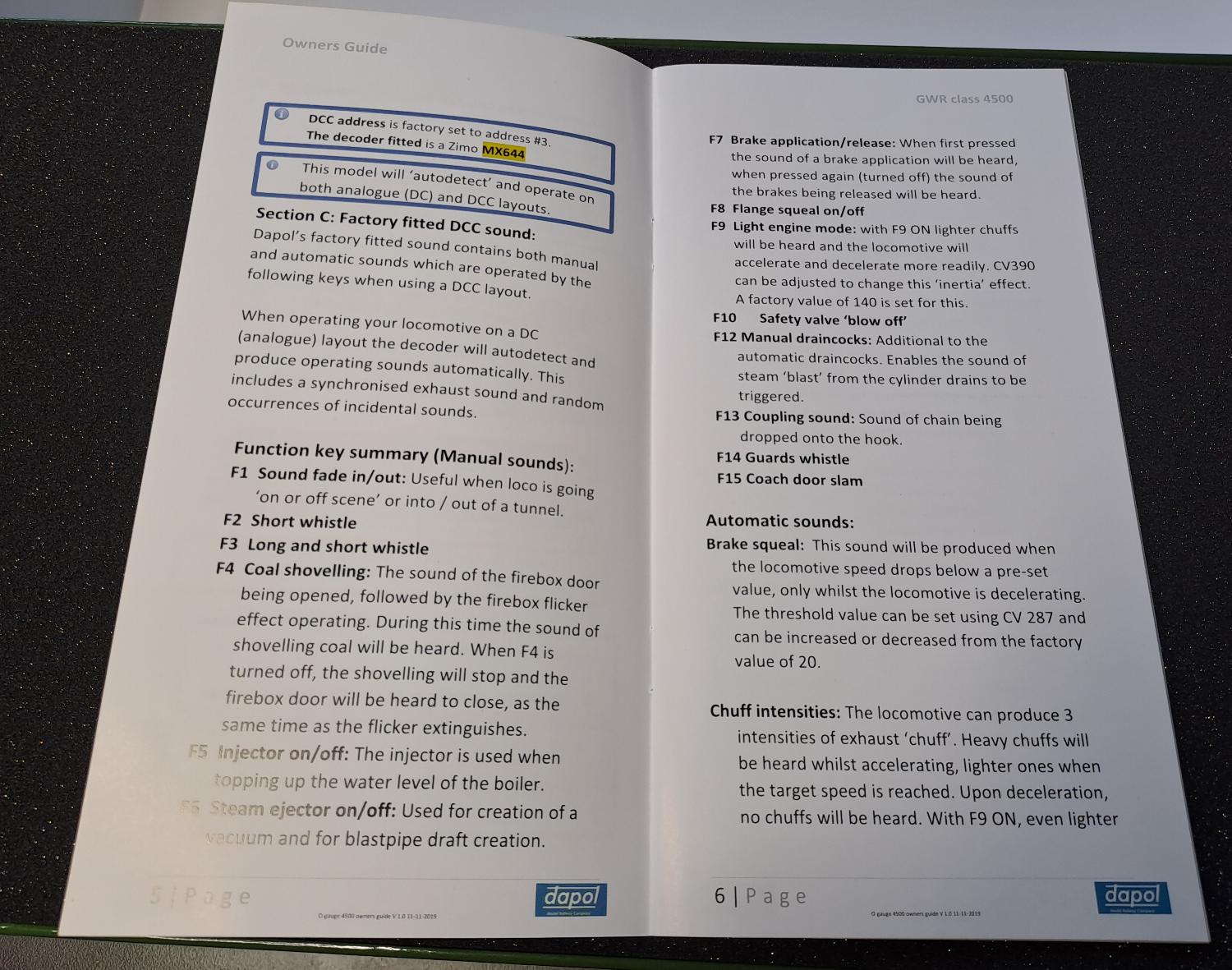

Example 1 Example 1

Example 1 Example 1

Example 1 Example 1

Example 1
