Bachmann/EFE OO J94

Bachmann/EFE OO J94 with Zimo Sound

Kit: MS590, SugarCube7

Bachmann's J94 is a retooled version of the DJM model for their EFE range. It now provides a Next18 socket in the boiler, so is a little easier to fit sound into.

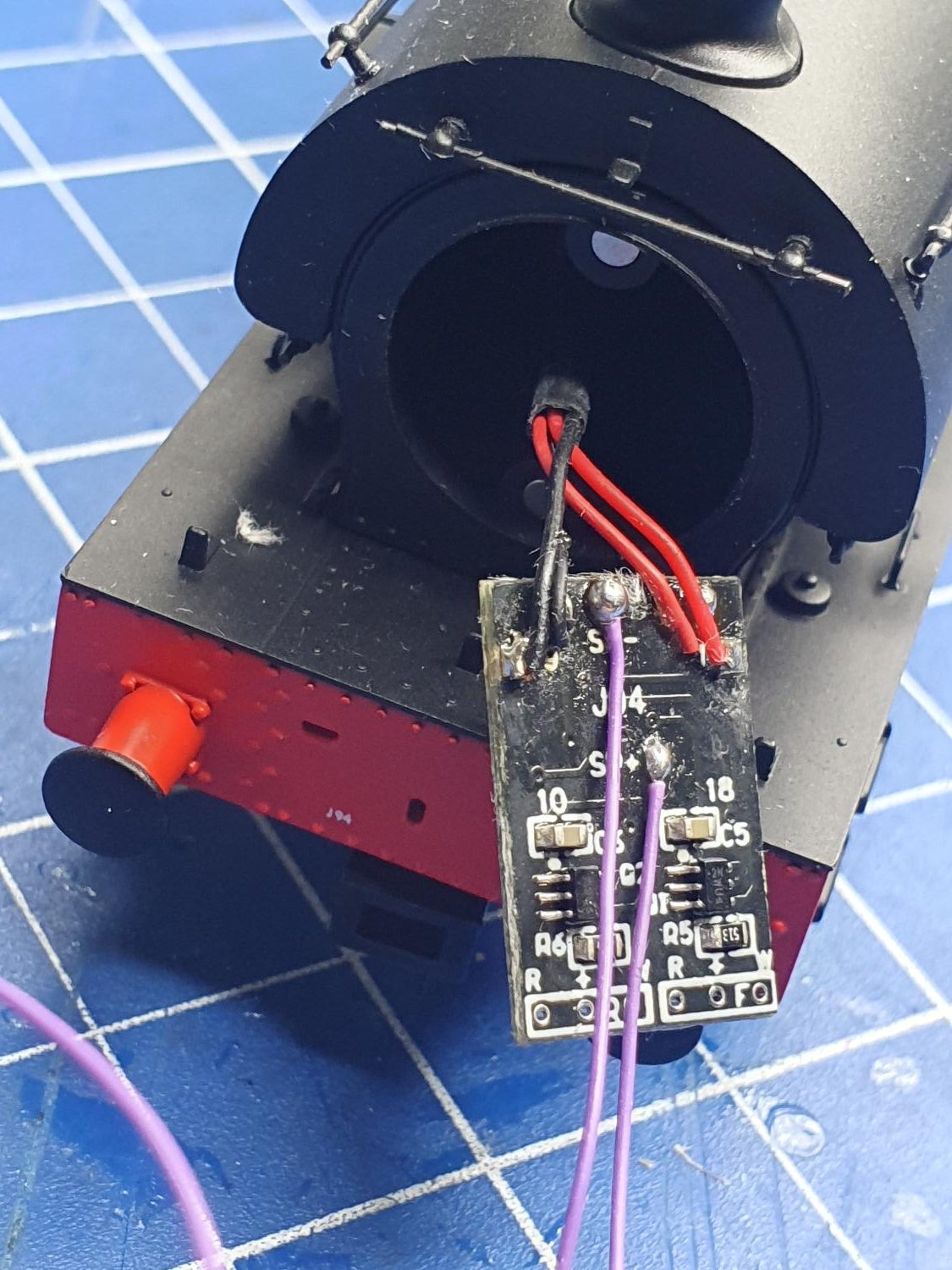

Speaker wires (purple) are soldered to the appropriate solder pads on the underside of the model's Next18 PCB.

Example 1 Example 1

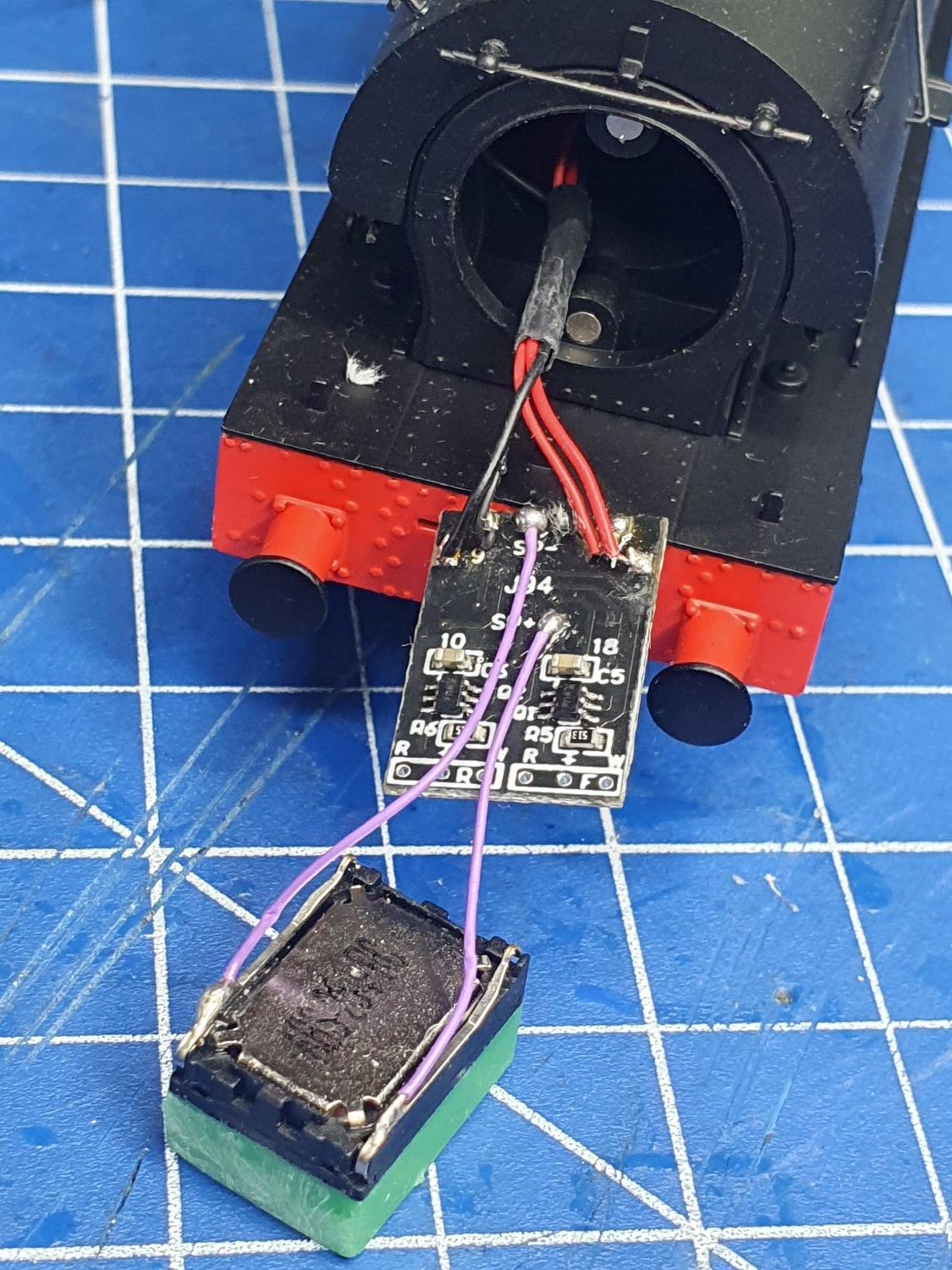

Our SugarCube7 speaker is attached to these, an a little MS590 sound decoder is plugged in. Protect in Kapton where necessary, and secure these into the boiler through the door.

Example 1 Example 1

Example 1 Example 1

Example 1 Example 1

Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
