Bachmann OO Class 158 DMU

Bachmann OO Class 158/159 DMU

Kit: MX645; Lube8; SuperCap6800uF; MX617 (in dummy)

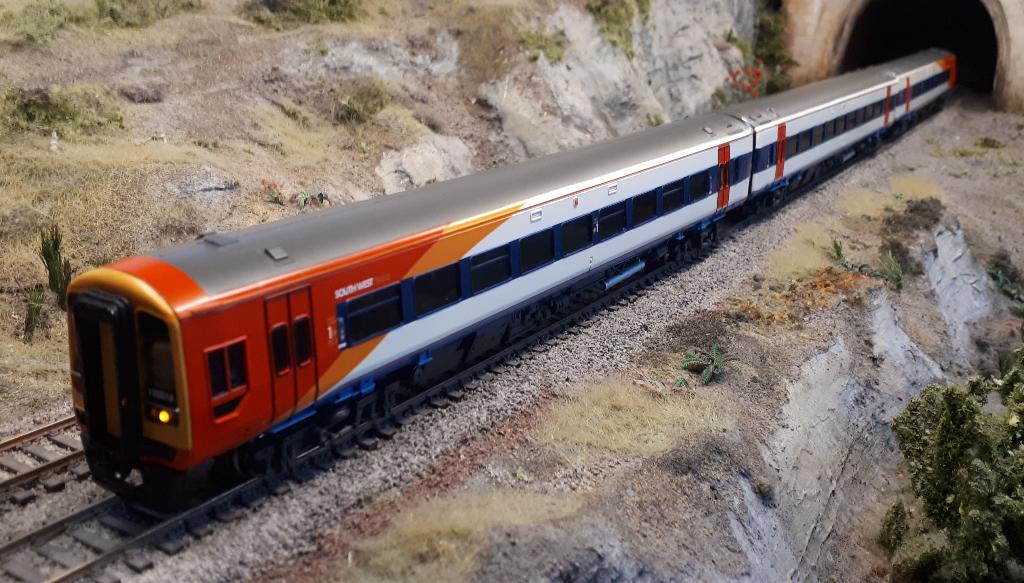

This is another example of a fairly old design Bachmann 159 model. It does have directional lighting built in, which we'll re-wire for DCC control.

Our Lube8 speaker will sit on top of one of the blocks, and the SuperCap on top of the other block.

Example 1 Example 1

The MX645 sound decoder is hard-wired, and stuck on top of the motor using BlackTack.

Example 1

In the dummy end, we use a hard-wired MX617 for control of the directional lighting.

Example 1 Example 1

Example 1 Example 1

Example 1

Example 1 Example 1

Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
