Bachmann OO 3F Jinty (8pin version) with Zimo MS

Bachmann OO Jinty 3F (8pin version) with Zimo MS sound and stay-alive

Kit: MS480; SugarCurve7; STACO1 stay-alive

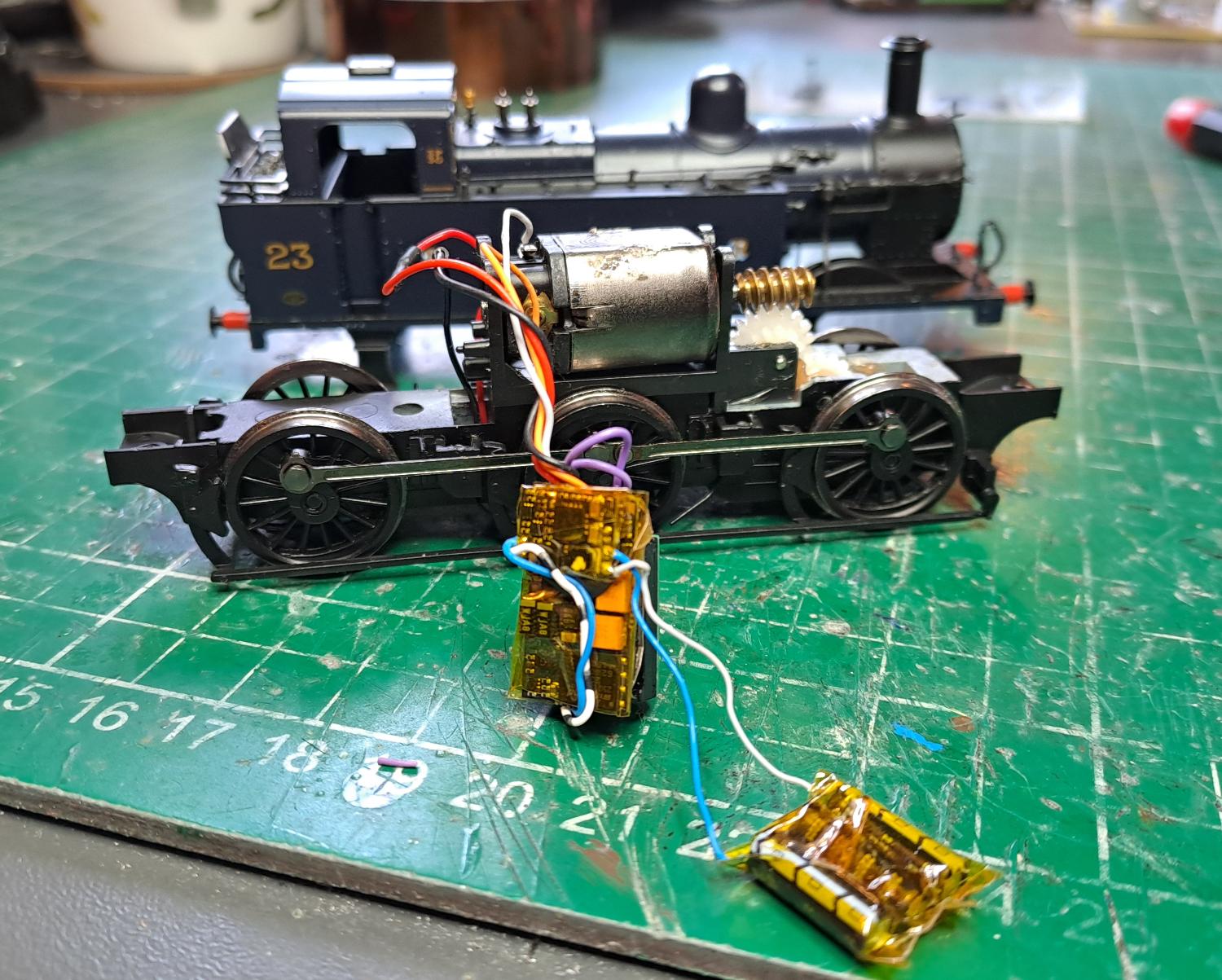

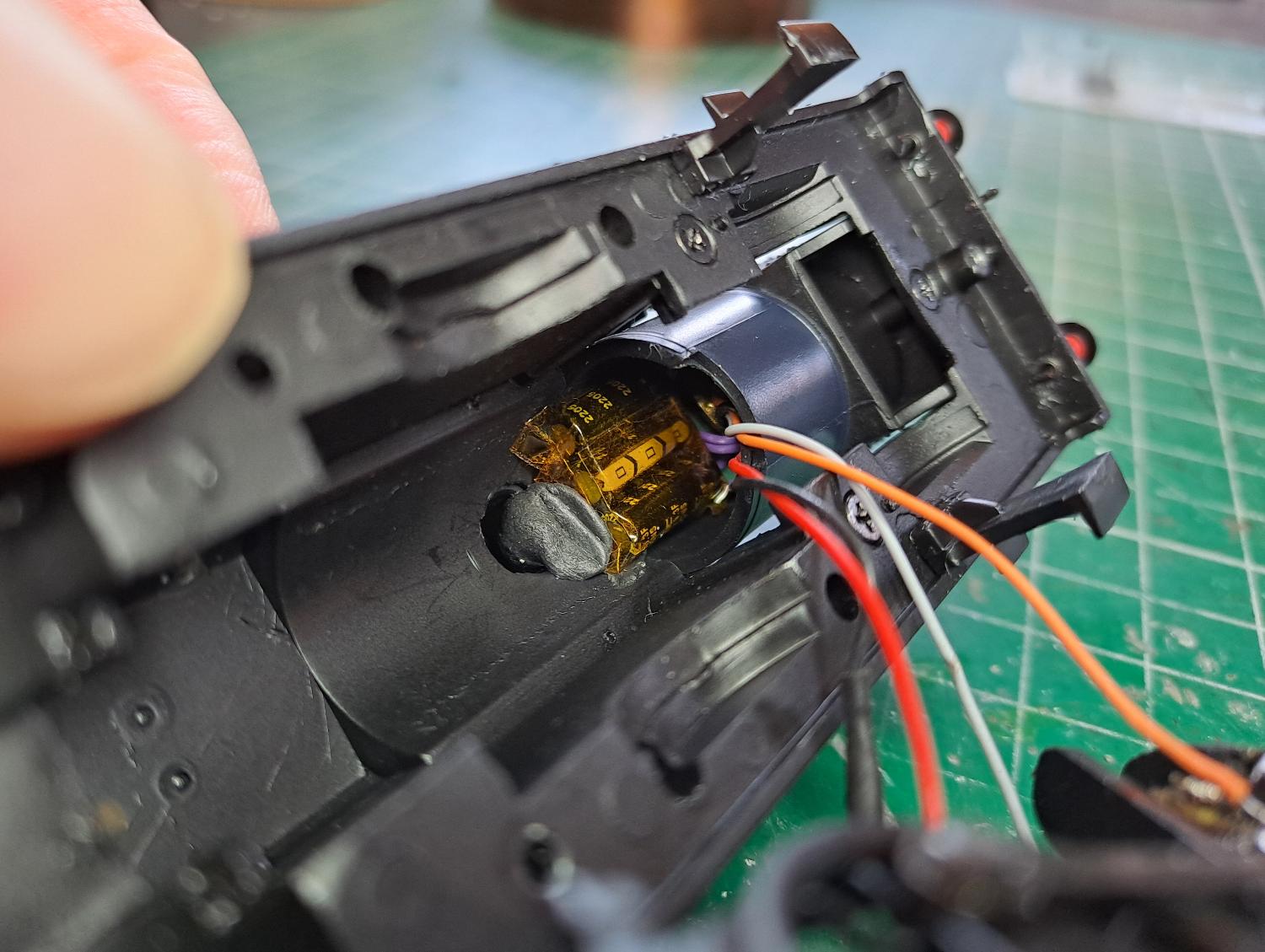

One of our old favourite models, this is the 8pin version of Bachmann's 3F Jinty. Here we have removed the 8pin socket and hard-wired in an MS480, SugarCurve7 speaker, and used a STACO1 stay-alive kit. The decoder and speaker slot up into the boiler, along with the PCB part of the STACO kit, and the 3 GoldCaps from the STACO kit are positioned just behind them, secured to the boiler roof with BlackTack - this fits just where the 8pin socket was originally.

Example 1 Example 1

Example 1 Example 1

Example 1 Example 1

Example 1

Example 1 Example 1

Example 1 Example 1

Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
