Bachmann OO Pannier with super Stay-Alive MGOBLOCK

Bachmann OO Pannnier with MS Sound and huge MGOBLOCK stay-alive

Kit: MS500, SugarCube7, LifeLink and MGOBLOCK stay-alive

Always looking for different, and better ways to get sound and stay-alive into models, here's a different approach to Bachmann's 8pin Pannier Tank.

Example 1

Strip out the 8pin DCC socket and flatten the platform for maximum space.

Example 1 Example 1

Kapton for insulation, we position the SugarCube speaker and MGOBLOCK stay-aive onto the platform.

Example 1

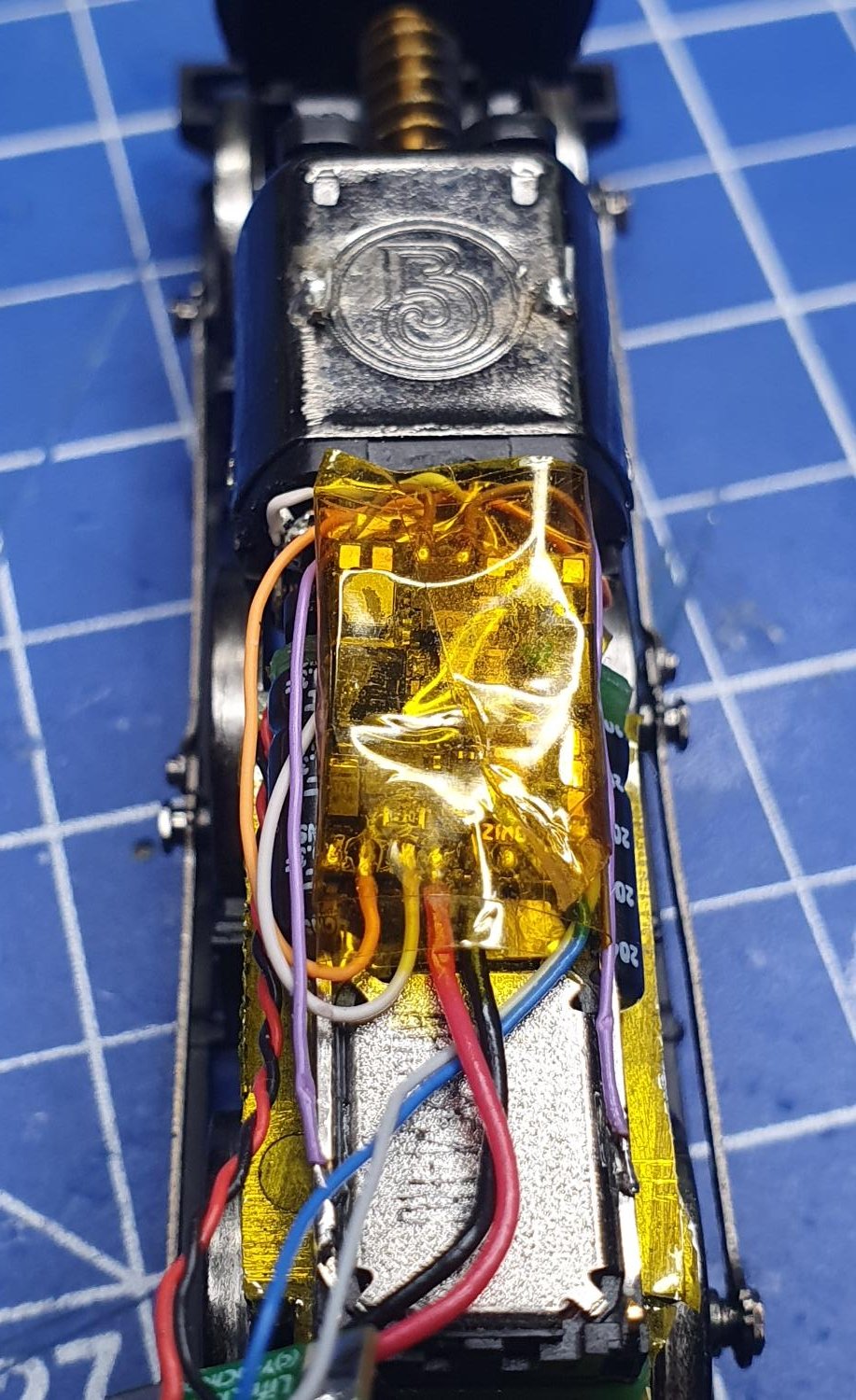

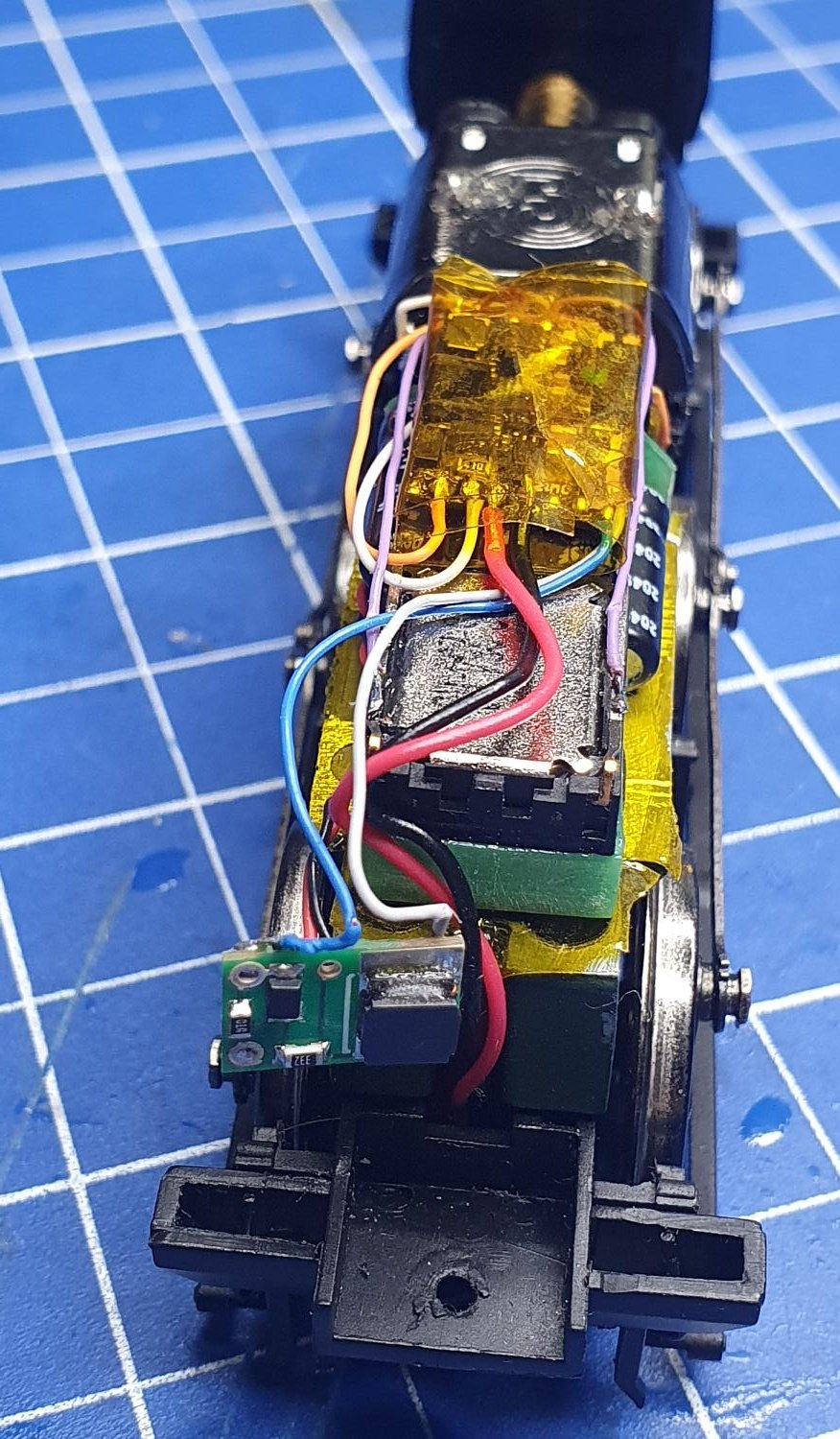

The MS500 (wired version) is hard-wired into the model, positioned above the MGOBLOCK GoldCaps, and a LifeLink is located at the front, all wrapped and protected of course. The LifeLink is necessary to sit between the MS500's Common Positive and Ground, and the 16V MGOBLOCK assembly.

Example 1 Example 1

It is tight, but done neatly, it is the perfect fit for the Pannier's boiler, and the stay-alive is immense!

Example 1 Example 1

Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
