Hornby Hitachi Class 800 IET

Hornby OO Hitachi Class 800 IET (EMU/DMU Hybrid)

Kit: Dual sound Zimo MX645R; YouChoos Custom dual SugarCube22x15x7-2W; SuperCap17000uF in dummy end

Awesome-looking model from Hornby! Underneath, some provision of room for decoder and low-profile speaker.

Example 1 Example 1

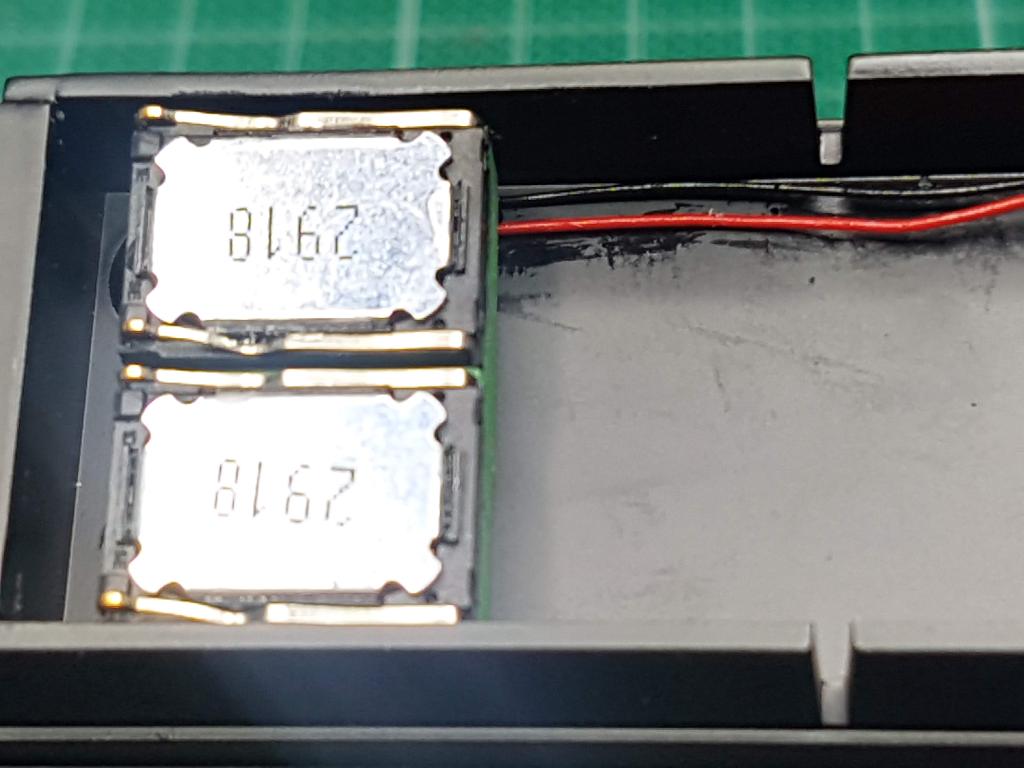

The space is tight, so we have developed a custom 3D speaker to fit the 800's space, measuring 22x15x7mm, this is a dual SugarCube speaker, to be used with the Zimo MX645R sound decoder.

Example 1

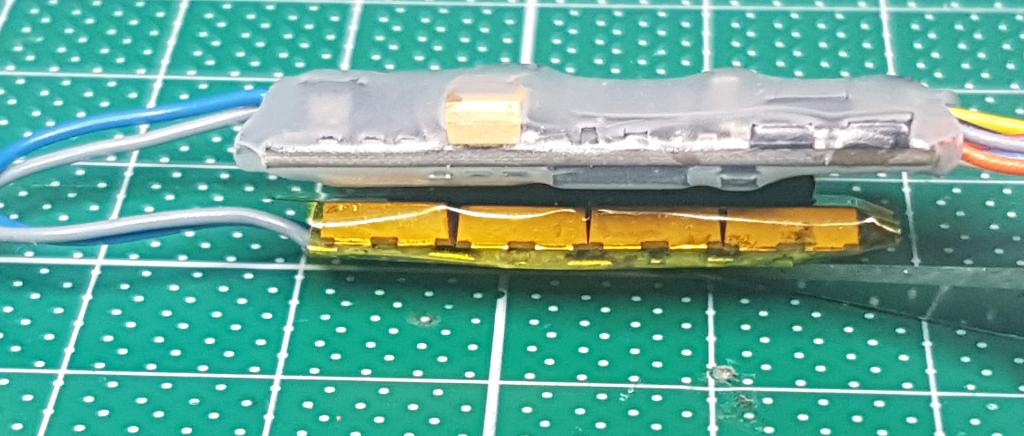

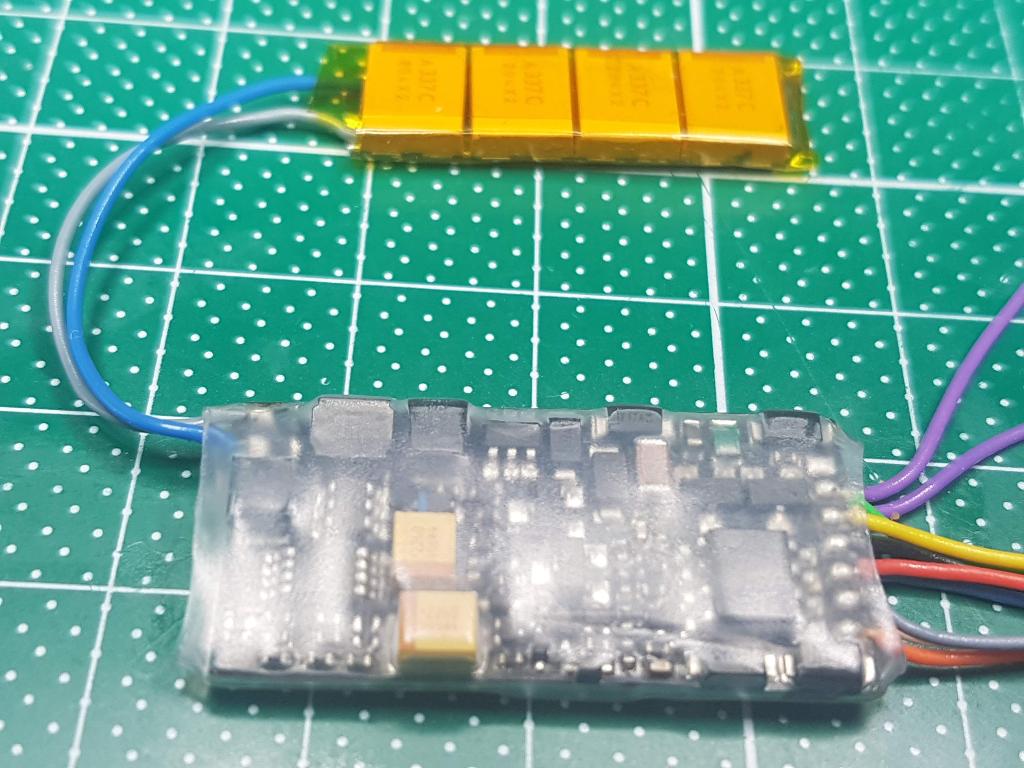

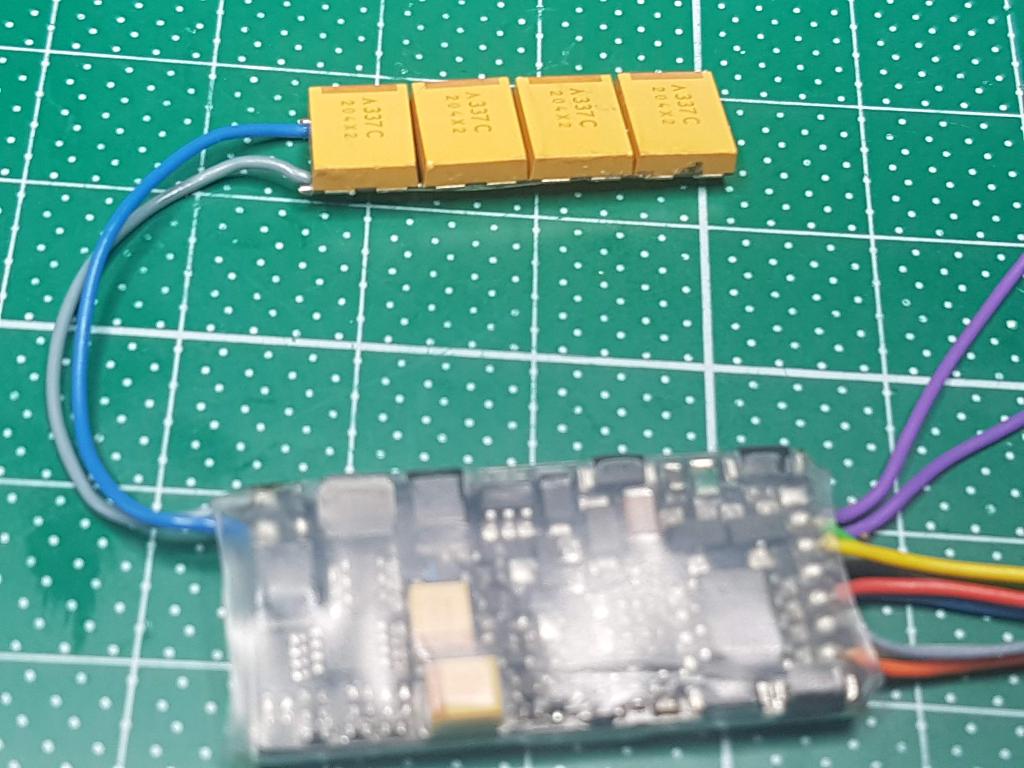

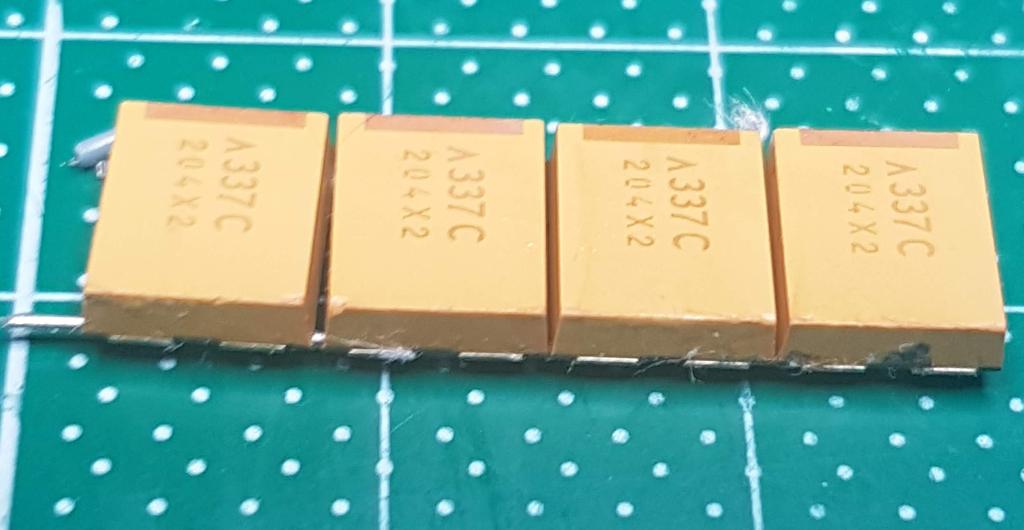

We also add a parallel array of Tantalums capacitors for stay-alive, which can be directly connected to the MX645's stay-alive wires.

Example 1 Example 1

Example 1 Example 1

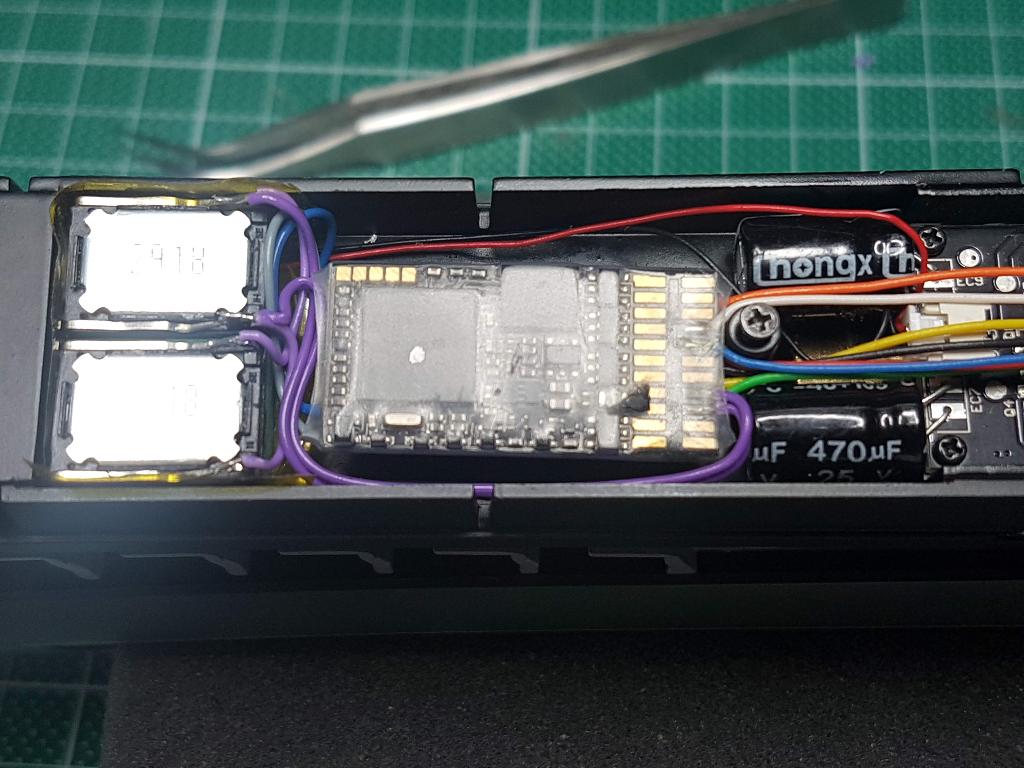

Neat and tidy fit. Same at both ends of the 800.

Example 1

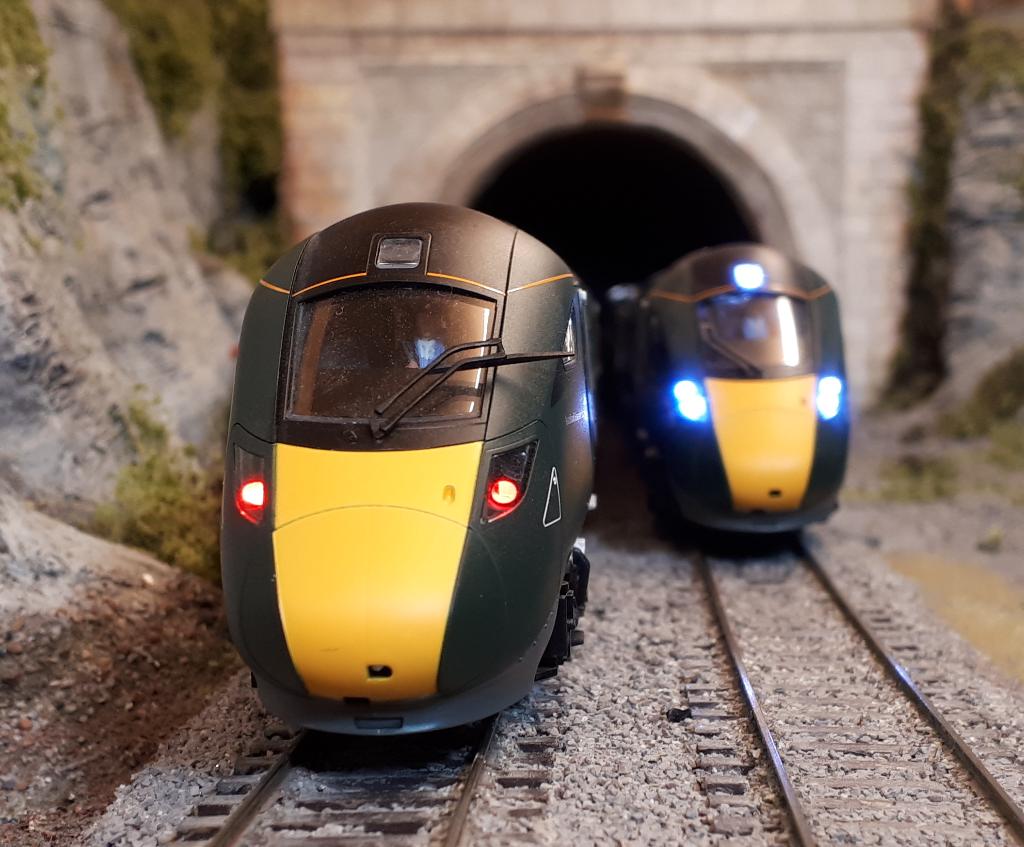

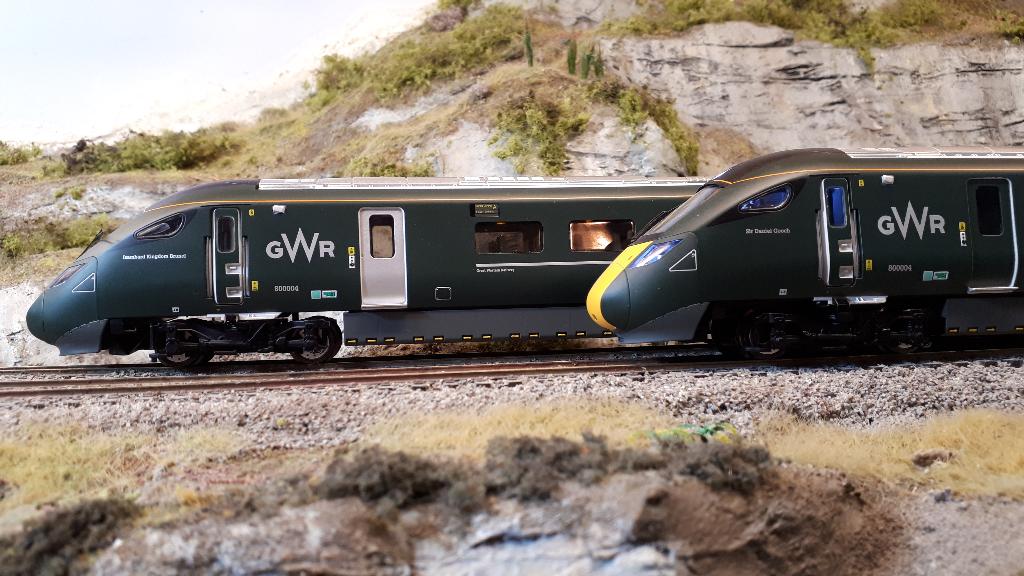

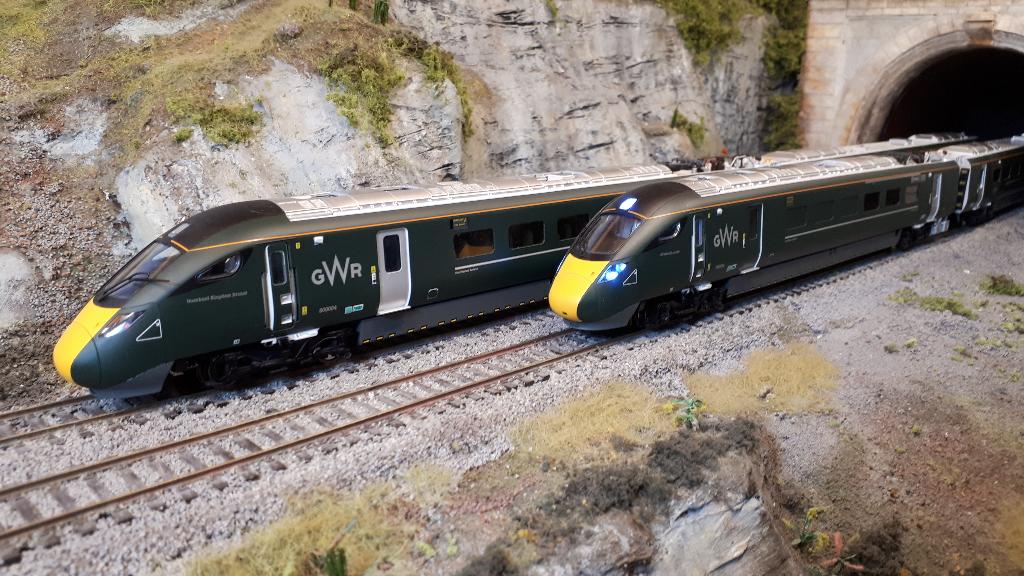

The completed train - really smart!

Example 1 Example 1

Example 1 Example 1

Example 1 Example 1

Example 1 Example 1

Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
