Bachmann OO Class 205 DMU Thumper with DCC Sound

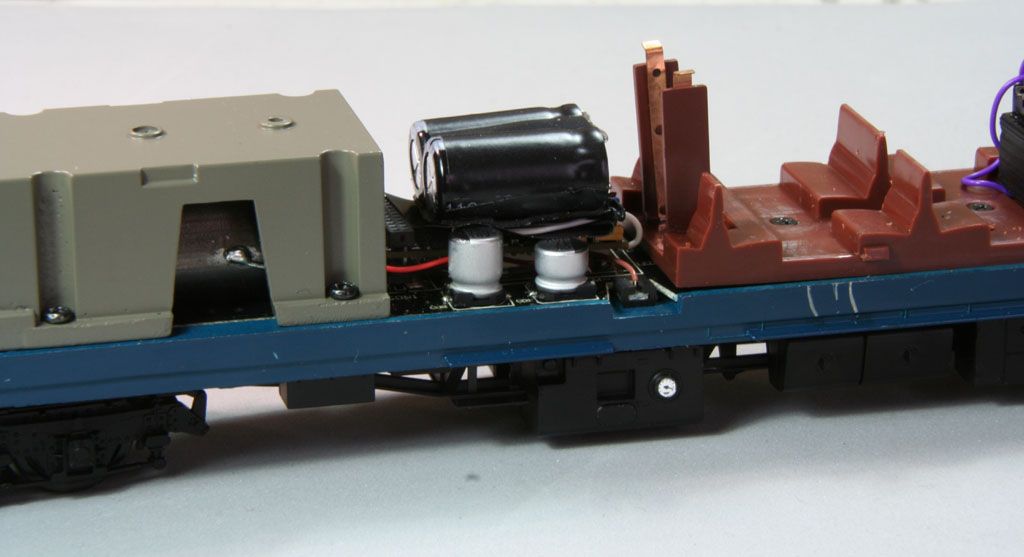

Example 1: Dumbo speaker and Electrolytic capacitors

Kit: Zimo MX644D with Zimo dual Dumbo LS50X15X14-2W

A fairly straight-forward DCC sound installation in a Bachmann Thumper, so we've upped the game a little by using one of the really big/loud Zimo Dumbo speakers (LS50X15X14-2W), slotting in the centre between seats, and a decent stay-alive (a pair of 2200uF/25V electrolytic capacitors).

Example 1 Example 1

Example 1

Example 1

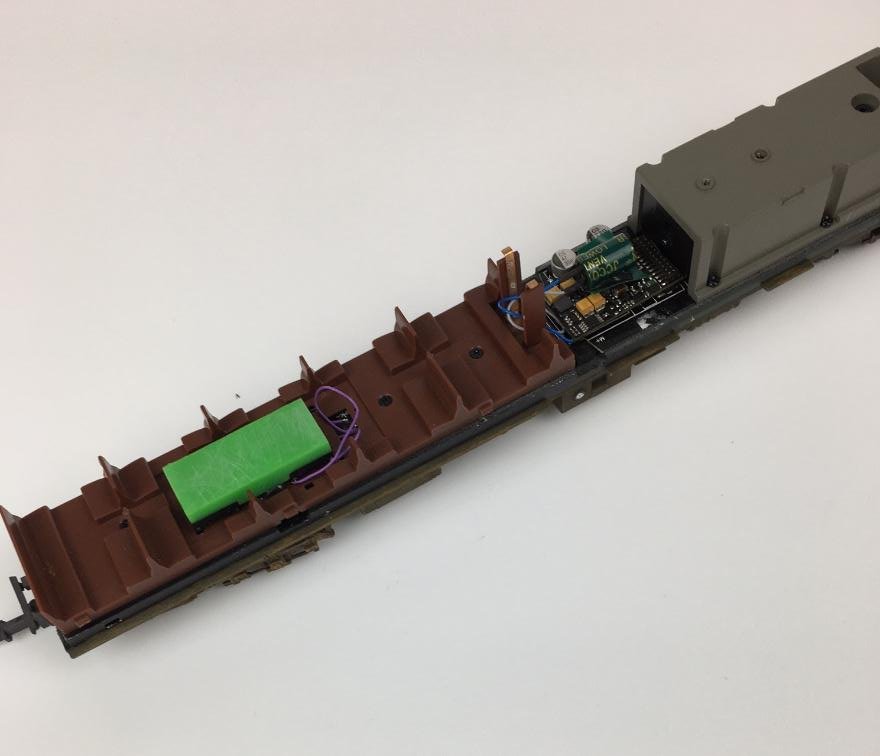

Example 2: Dual SugarCube speaker

Kit: MX644D; SugarCube35X15X10 speaker

Similar approach, just using one of our 35mm dual SugarCube speakers instead. Photos show before and after painting the speaker to disguise it through the windows.

Example 2 Example 2

Photos for this example provided courtesy of Richard Allen.

Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
