Zimo FS850 ('R' 8pin on harness and PluX22 direct plug-in) Function Sound Decoder

Code: FS850

× Cancel

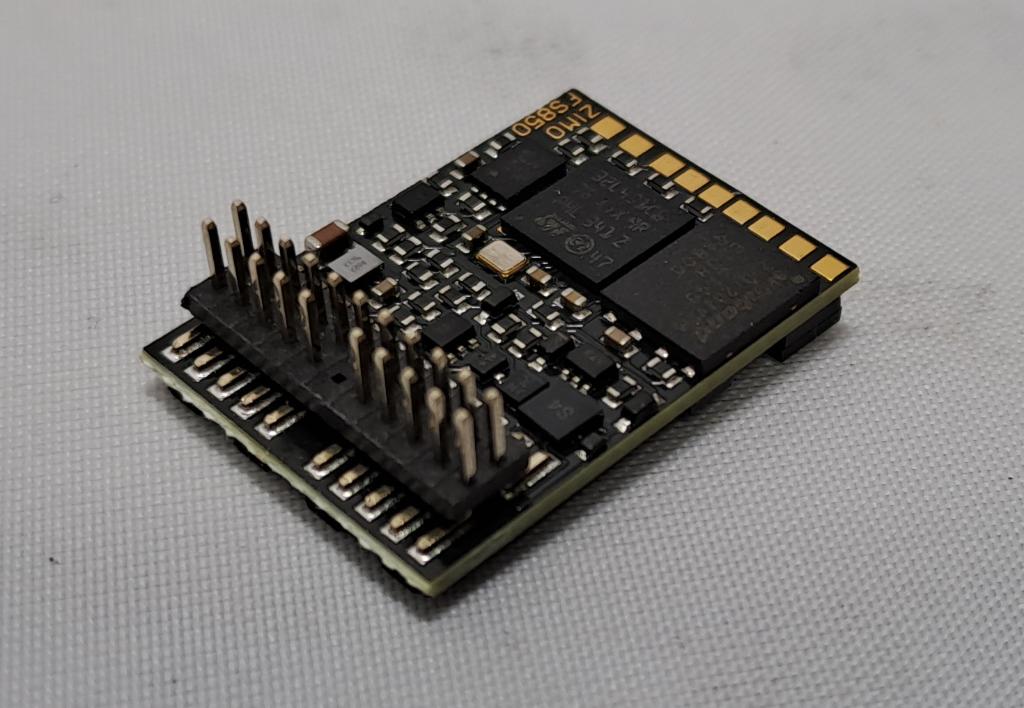

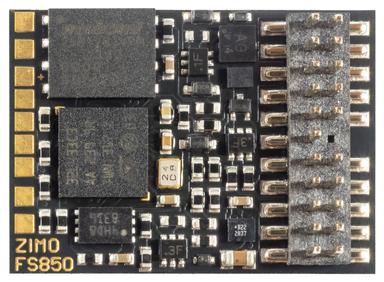

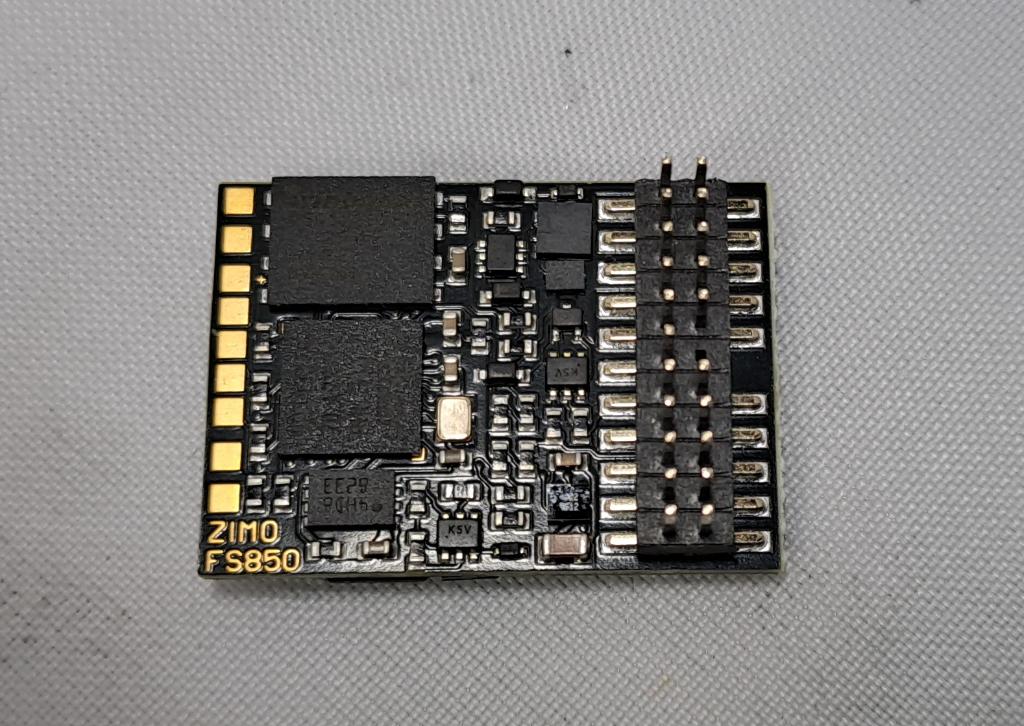

Zimo FS850 Function Sound Decoder

21x15x3.6mm No motor output Unlimited 16V direct stay-alive (including SuperCaps and Tantalums) PluX22 direct plug-in or 8pin on wired harness 3W audio / 10 Functions

Variants / Sub-Products

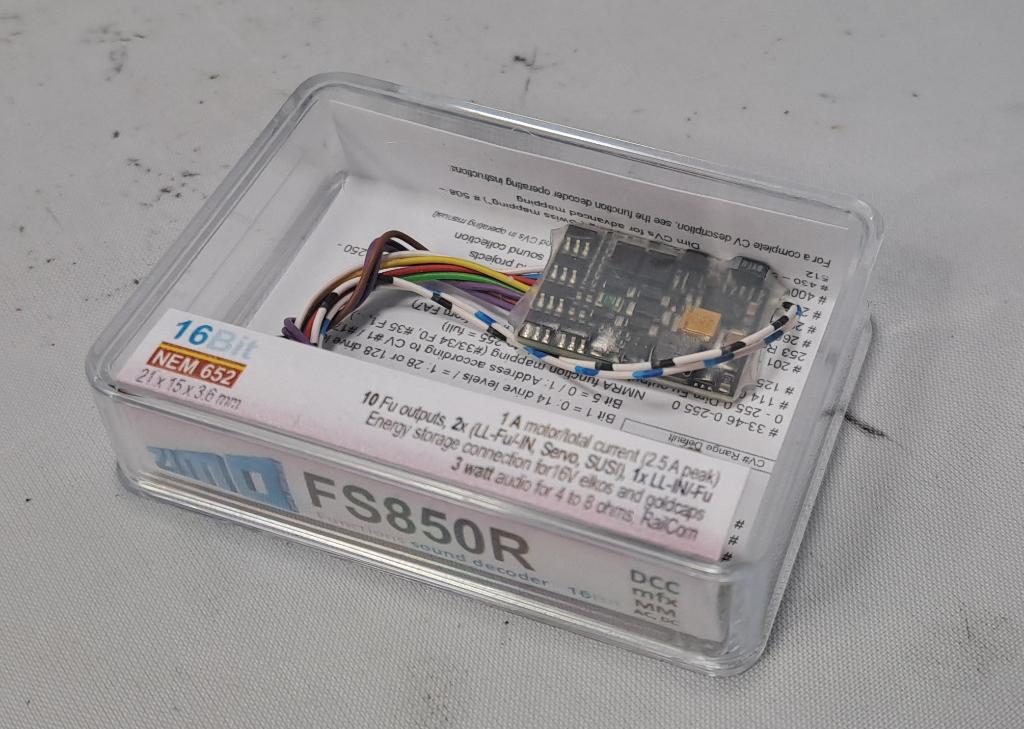

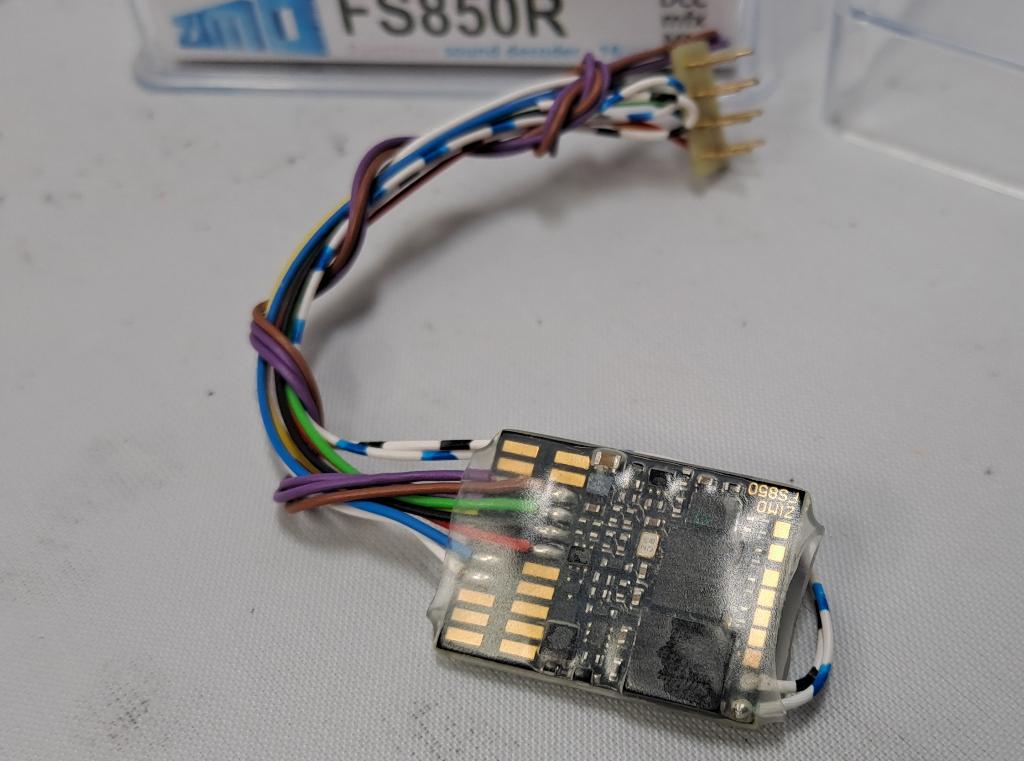

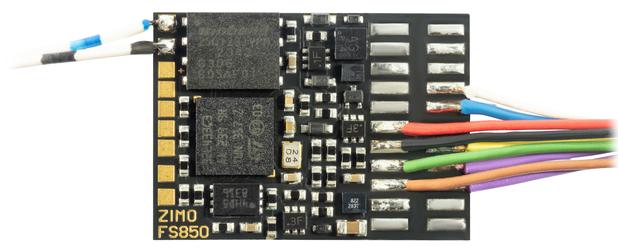

FS850R	× Cancel	'R' Version 8pin plug on wired harness

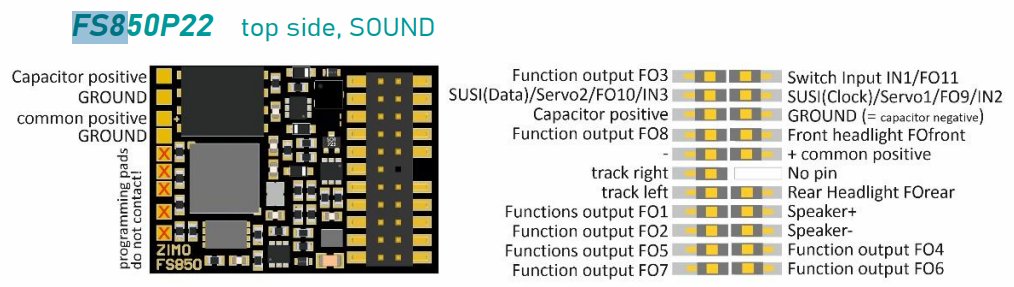

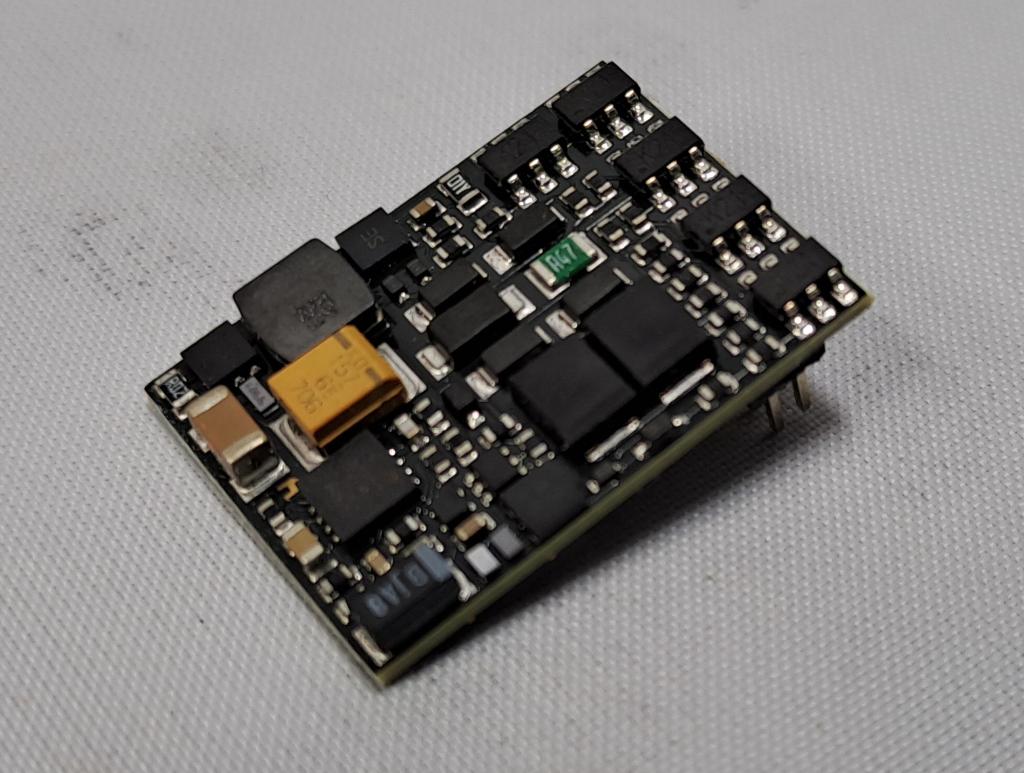

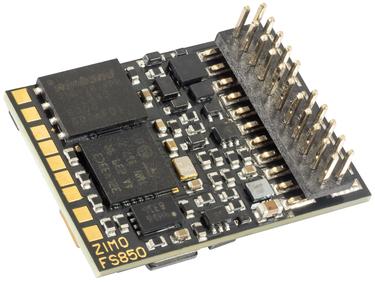

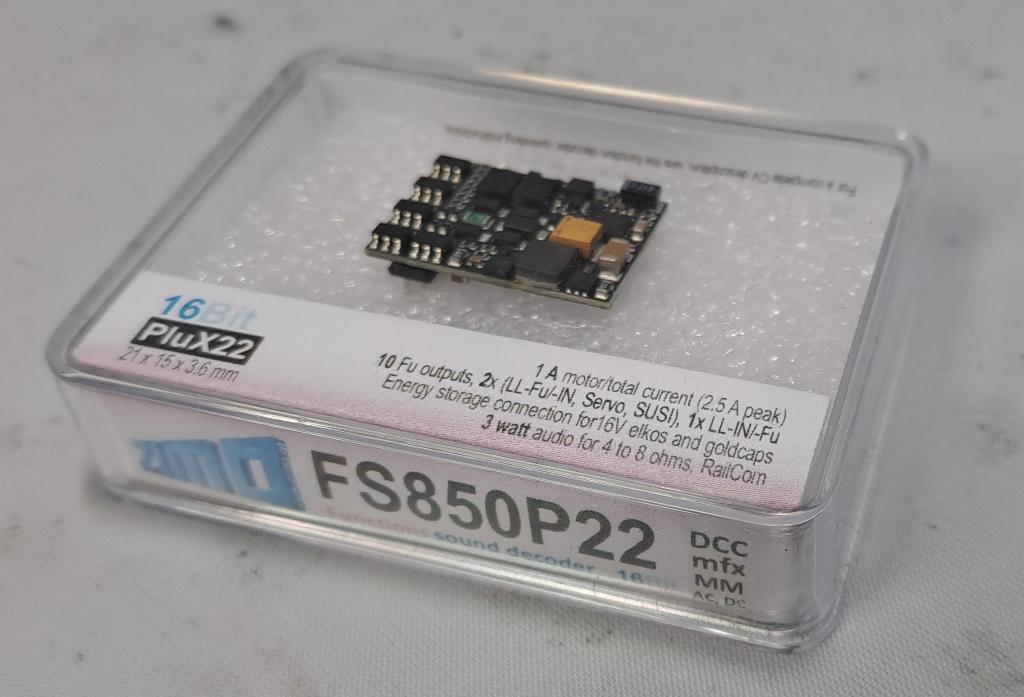

FS850P22	× Cancel	'P22' Version PluX22 direct plug-in

Description

The FS850 function sound decoder from Zimo is similar to MS range but without motor output. 10 AUX function outputs for lighting, smoke generators, auto-couplings etc., energy storage facilities built-in (just add any 16V external capacitor to take advantage).

Designed for vehicles that don't have a motor on board, such as dummy coaches in DMUs/EMUs, the FS850 is otherwise the equivalent of the MS450.

Technical Specification

• 3W audio power
• 4ohm - 8ohm speakers supported
• 16-channel output
• 11, 22 and 44 khz sounds supported
• No motor output
• 10 AUX function outputs, max combined 0.8A
• 2 logic level outputs e.g. servo control / SUSI
• Energy storage support (16V direct) with Smart Stop
• 128 MBit memory
• Railcom
• DCC, DC-Analog, MM, AC-Analog, Mfx
