Zimo FS890 (Next18 direct plug-in) Function Sound Decoder

Code: FS890

× Cancel

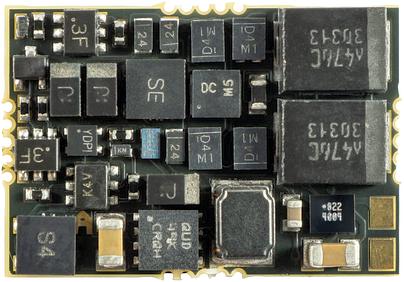

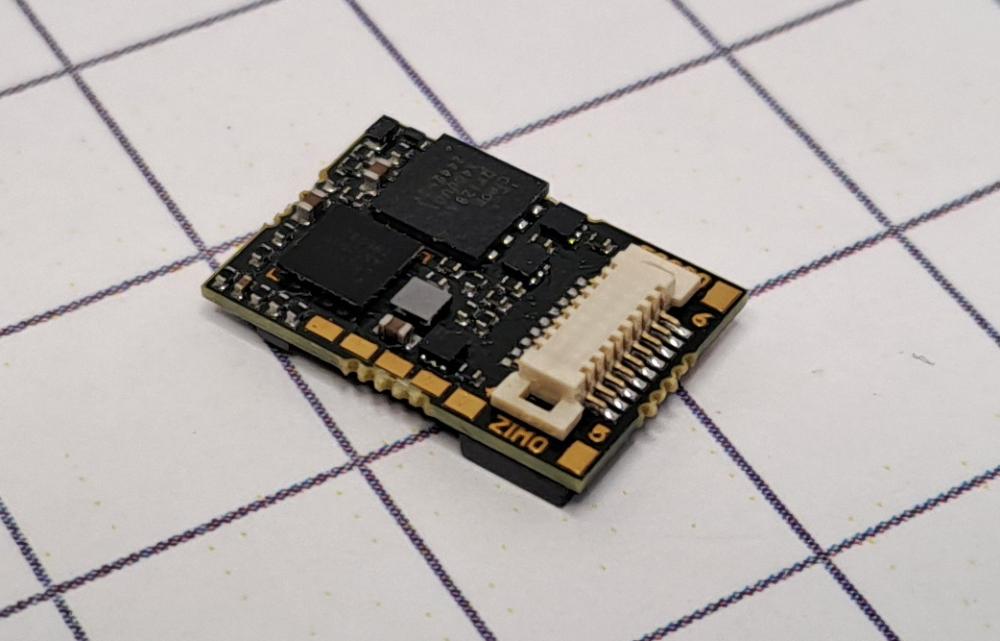

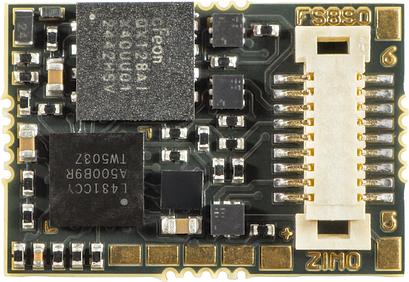

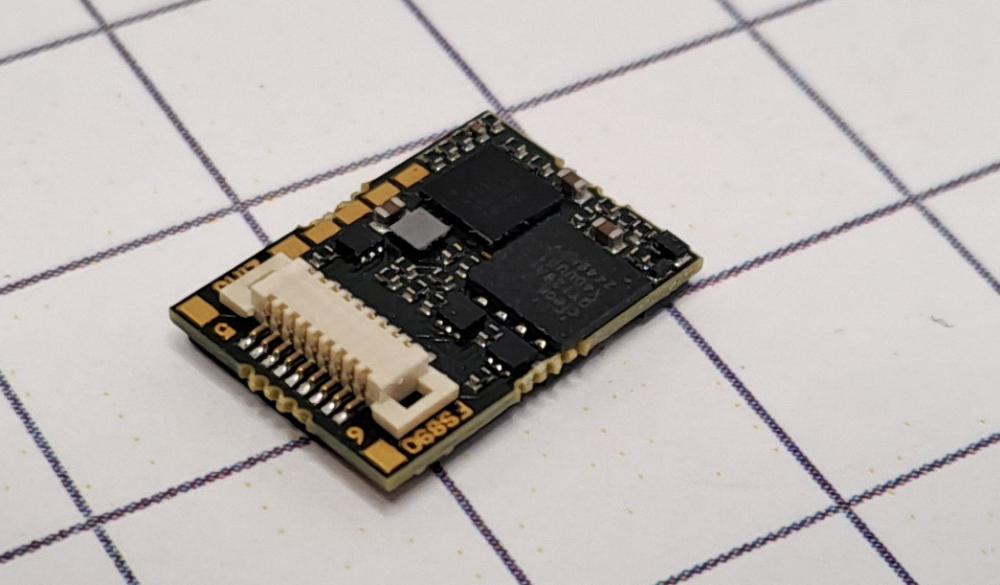

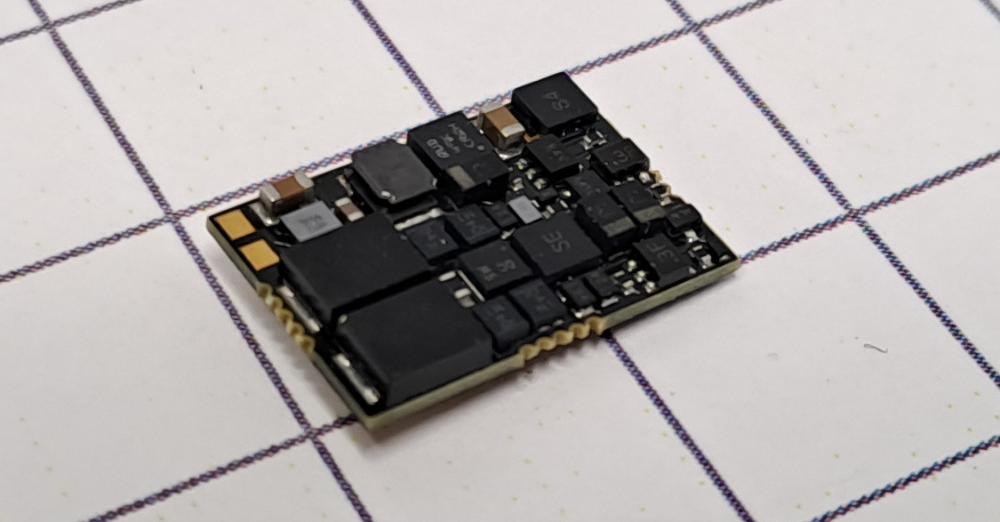

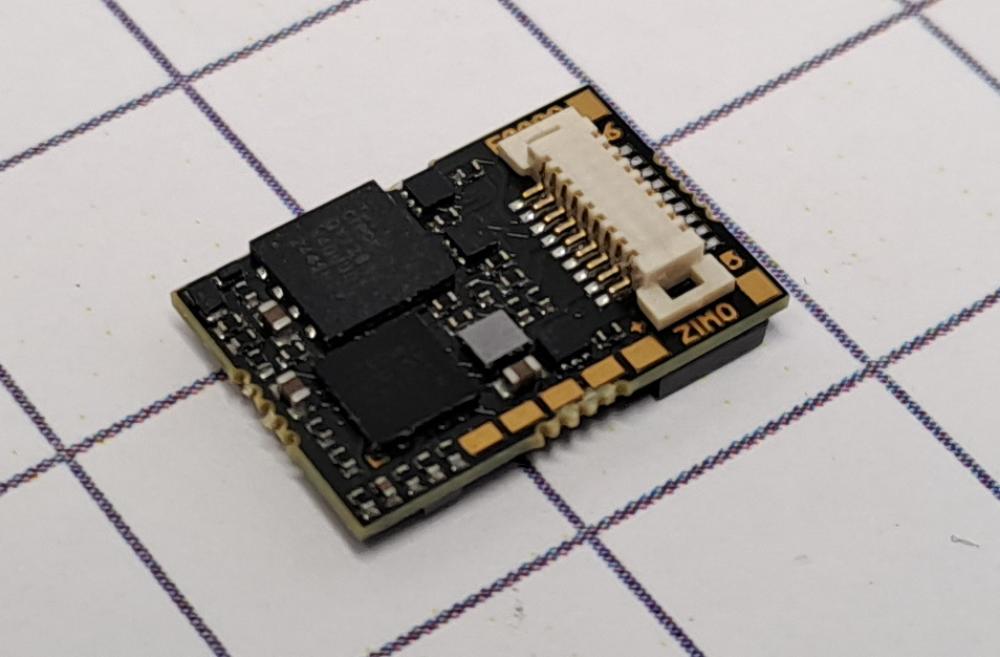

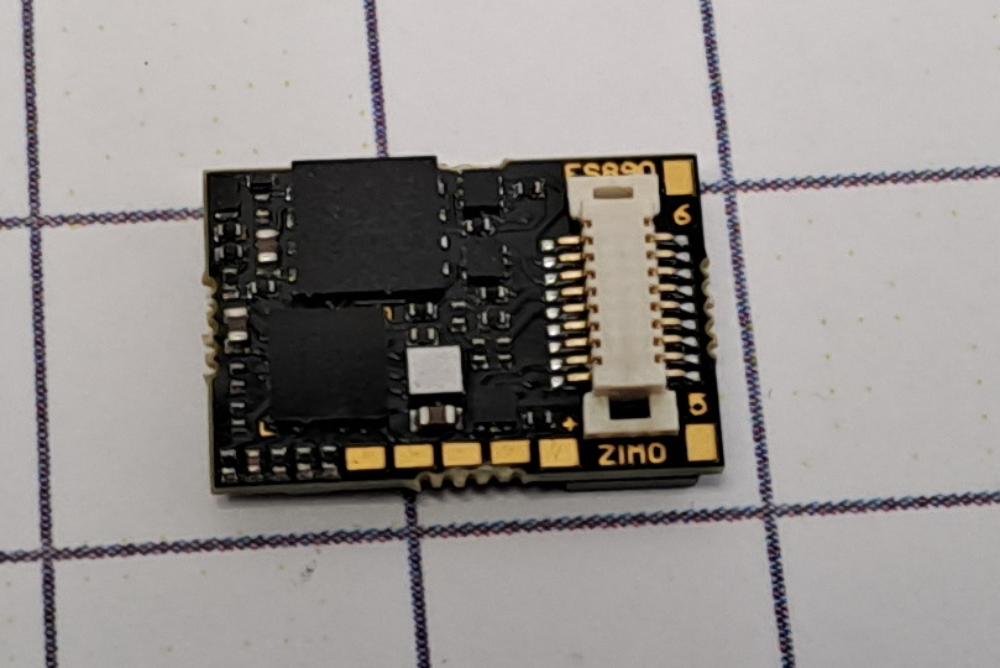

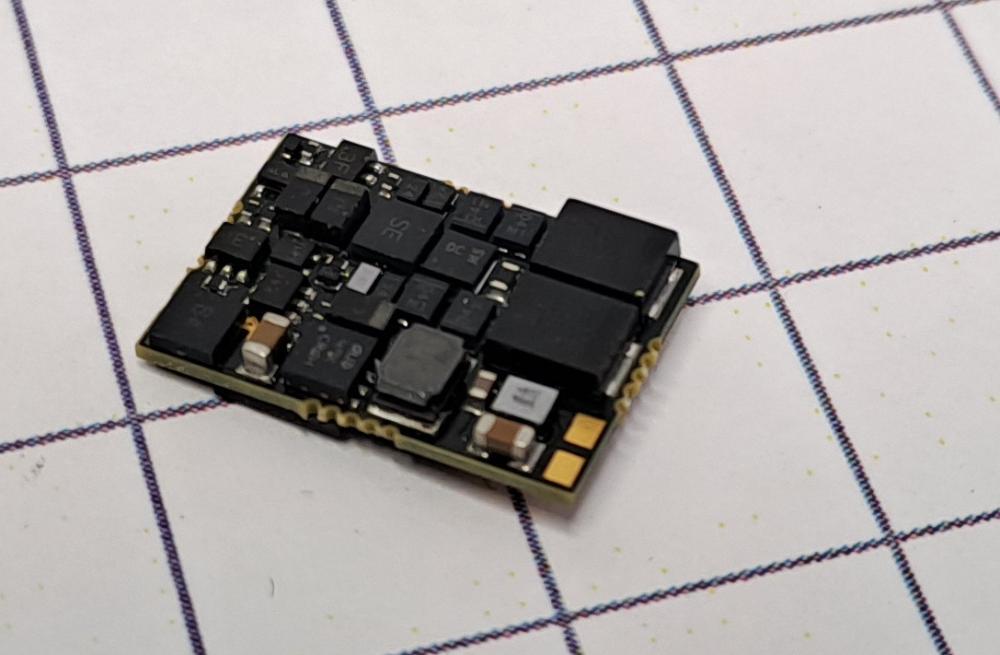

Zimo FS890 Function Sound Decoder

13.6x9.3x3.1mm No motor output Stay-alive via STACO/LifeLink Next18 direct plug-in 1W audio / 6 Functions

Variants / Sub-Products

FS890N18

× Cancel

Next18 direct plug-in

Description

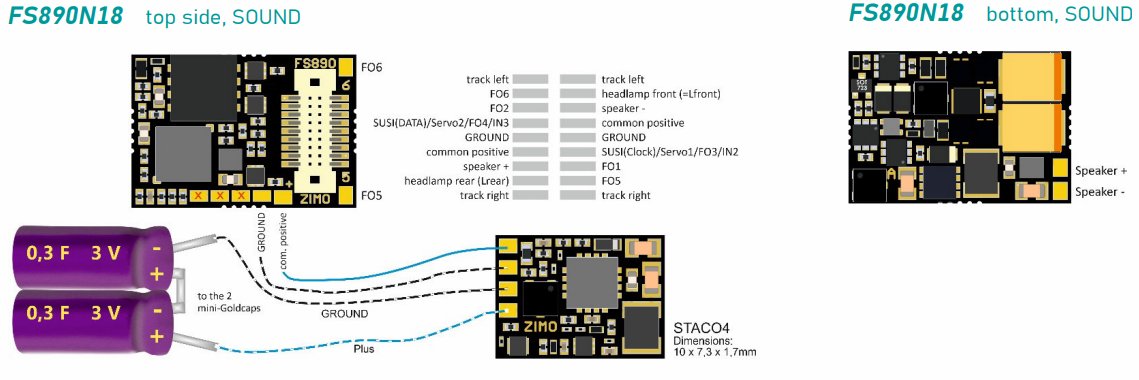

The FS890 function sound decoder from Zimo is similar to MS (MS591) range but without motor output. 6 full power AUX function outputs for lighting, smoke generators, auto-couplings etc., energy storage facilities are via STACO or LifeLink connection.

Designed for vehicles that don't have a motor on board, such as dummy coaches in DMUs/EMUs, the FS890 is otherwise the equivalent of the MS591.

Technical Specification

• 1W audio power
• 8ohm speakers supported
• 16-channel output
• 11, 22 and 44 khz sounds supported
• No motor output
• 6 full power AUX function outputs, combined 0.5A (peak 0.7A)
• 2 logic level outputs e.g. servo control / SUSI
• Energy storage support is via external STACO or LifeLink kits
• 128 MBit memory
• Railcom
• DCC, DC-Analog, MM (does not support MFX or AC-Analog)
