Zimo MN180 (Next18 direct plug-in) Standard Decoder

Code: MN180

× Cancel

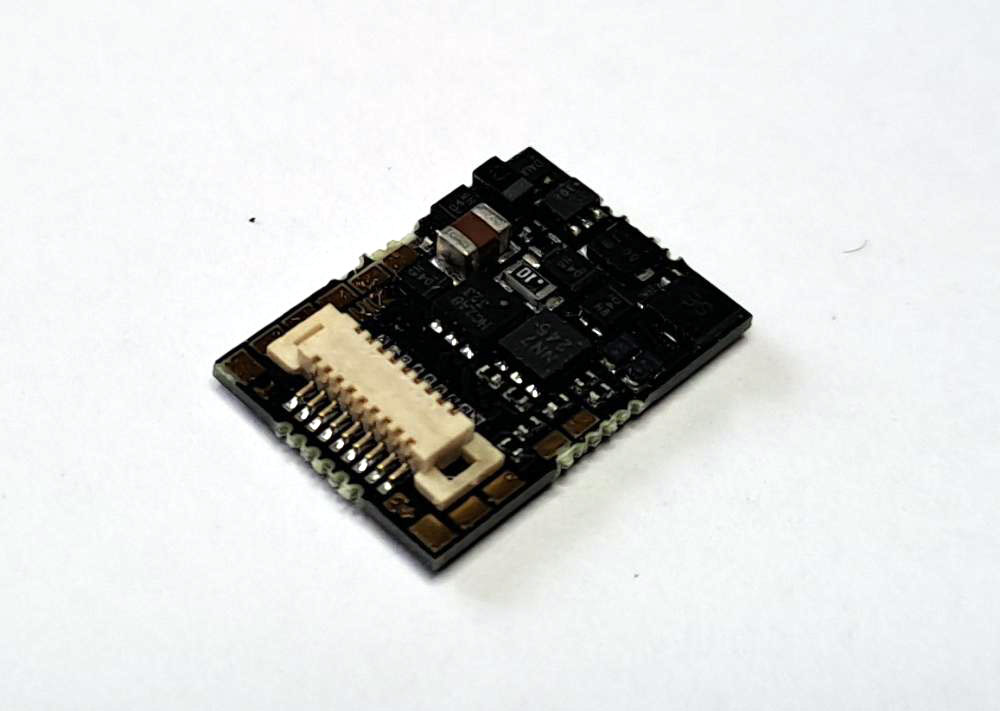

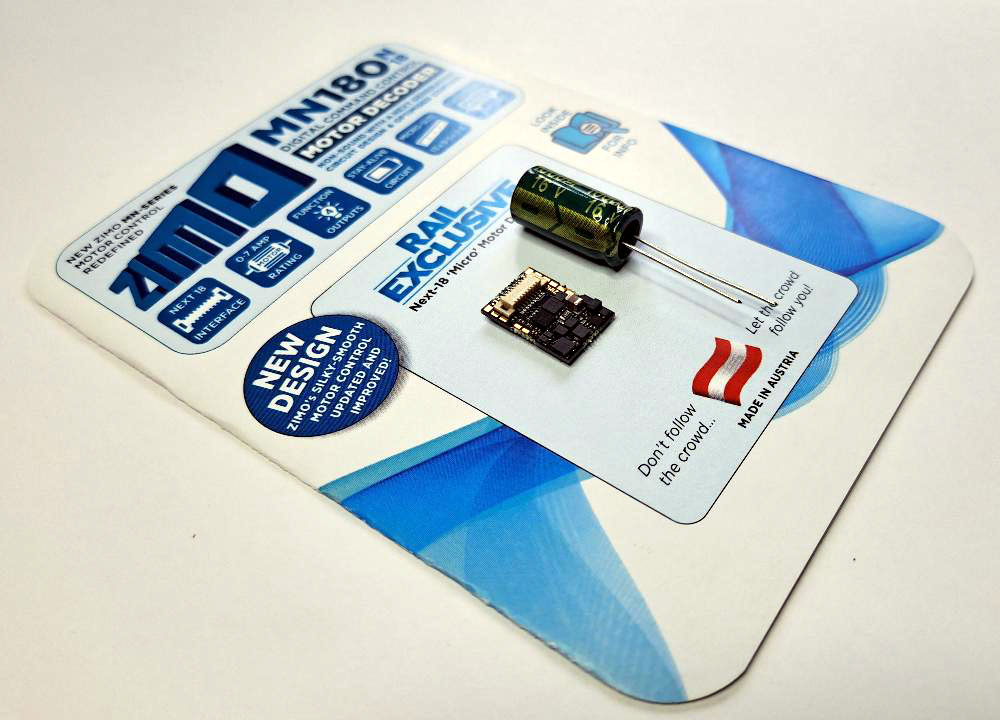

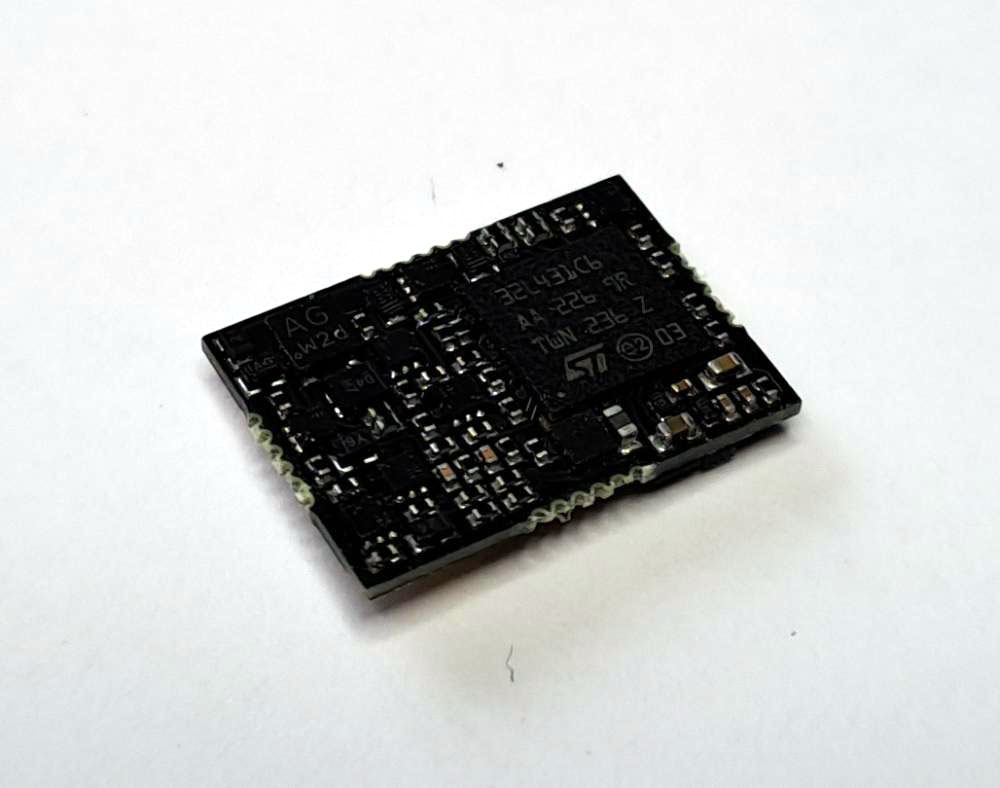

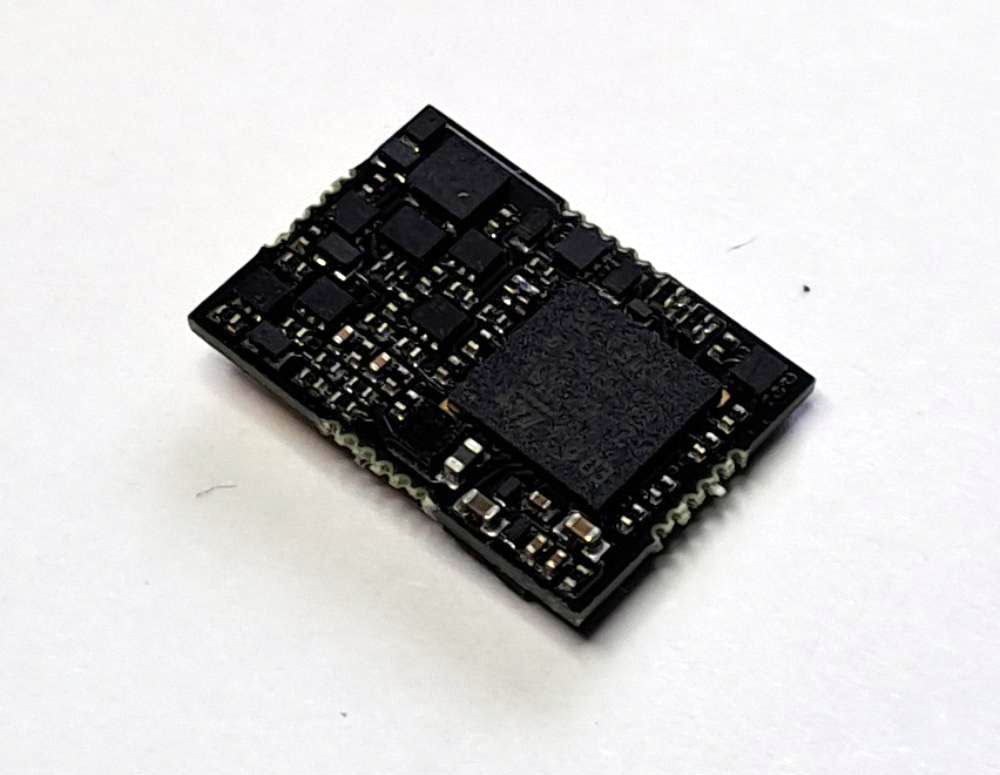

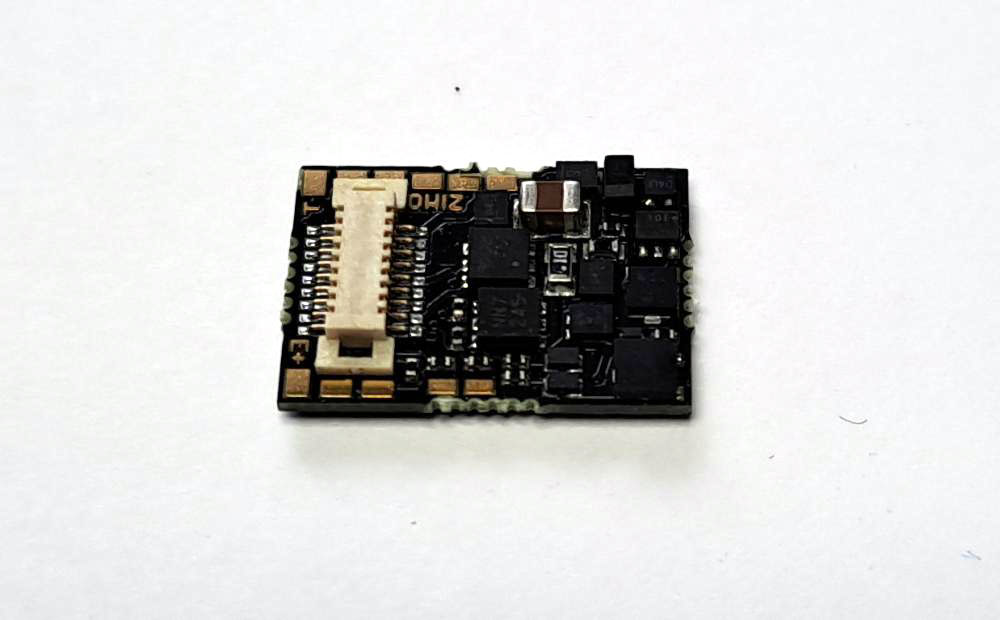

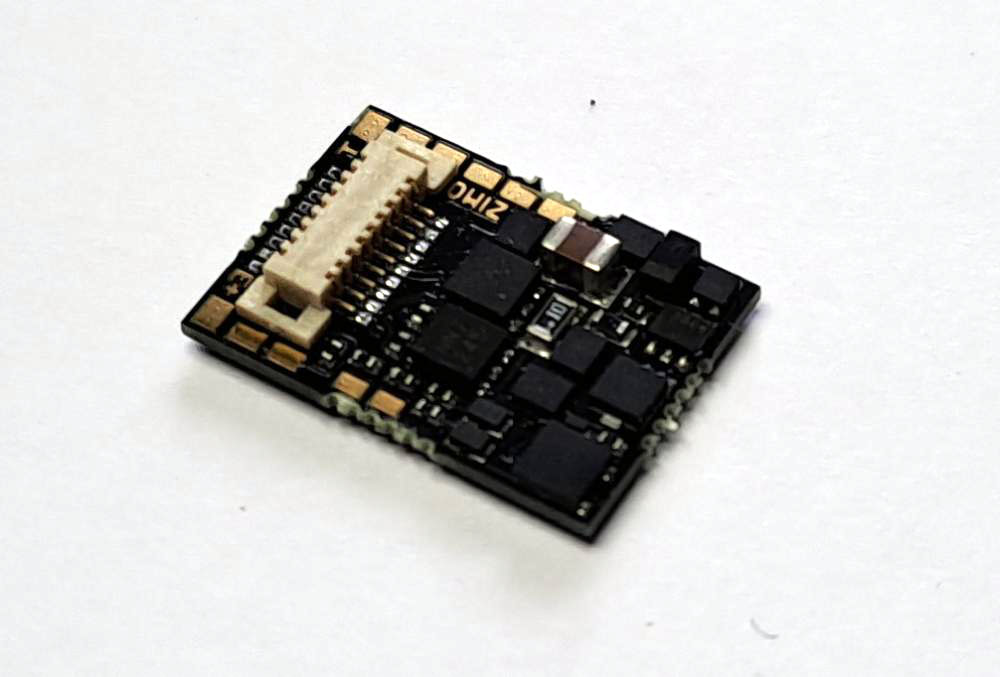

Zimo MN180 Standard Decoder

13.3x9.5x2.6mm 0.7A continuous / 1.5A peak Solder pads for 16V direct up to max 15000uF Next18 4 full power outputs + 4 logic level

Description

The MN180 standard decoder from Zimo uses the same technology platform as Zimo MS sound decoders, just without the audio facilities.

Technical Specification

• 0.7A continuous motor output / 1.5A peak for short periods
• 4 full power function outputs, max combined 0.5A
• 4 logic level outputs e.g. servo control / SUSI
• Solder pads for direct connection of 16V max 15000uF capacitor or use STACO kit for 2x/3x GoldCap connection
• Railcom
• DCC, DC-Analog, MM, AC-Analog, Mfx

×
