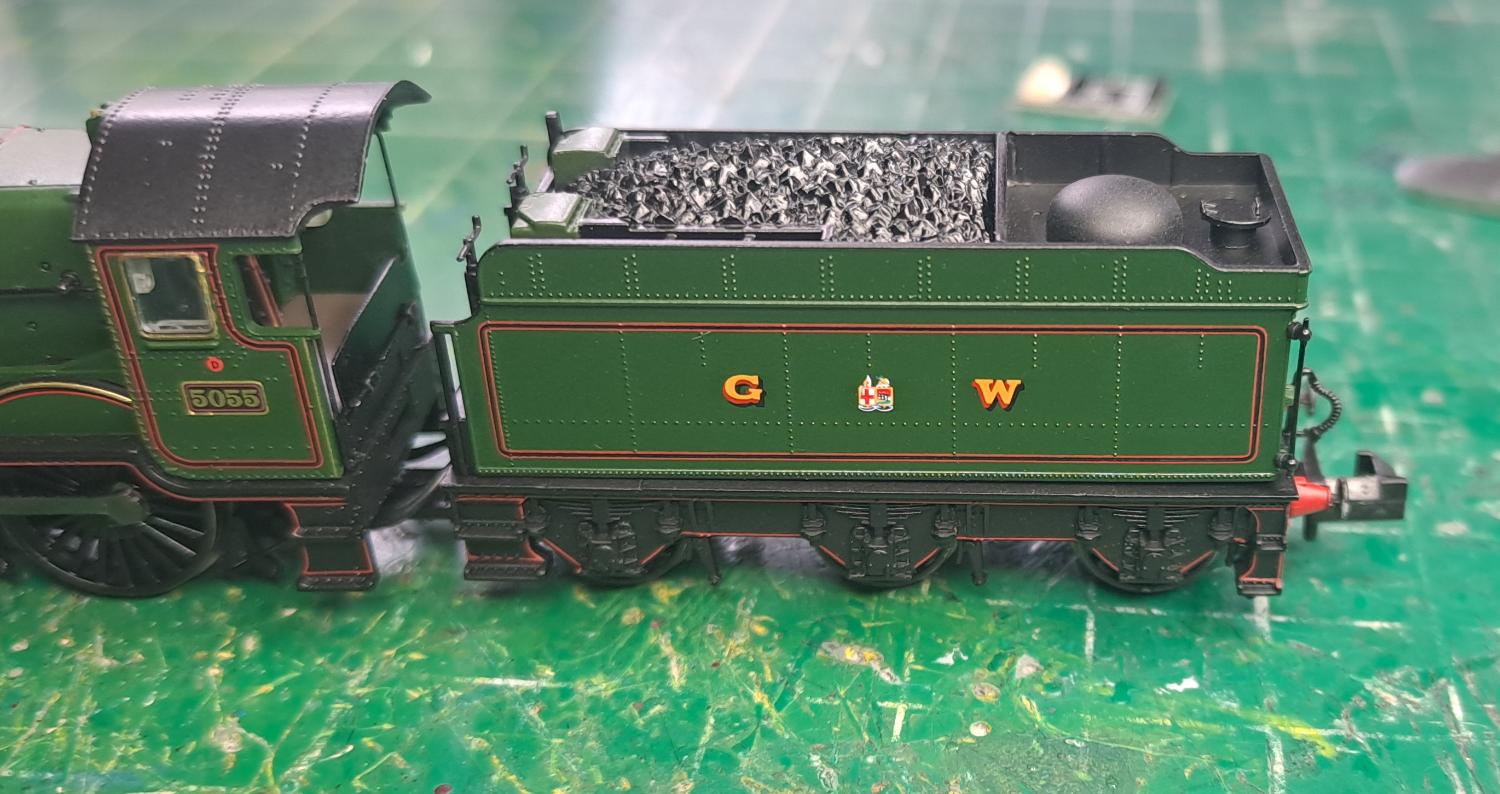

Graham Farish GWR Castle in N Gauge - redesigned tender with factory-speaker

Kit: MS581G

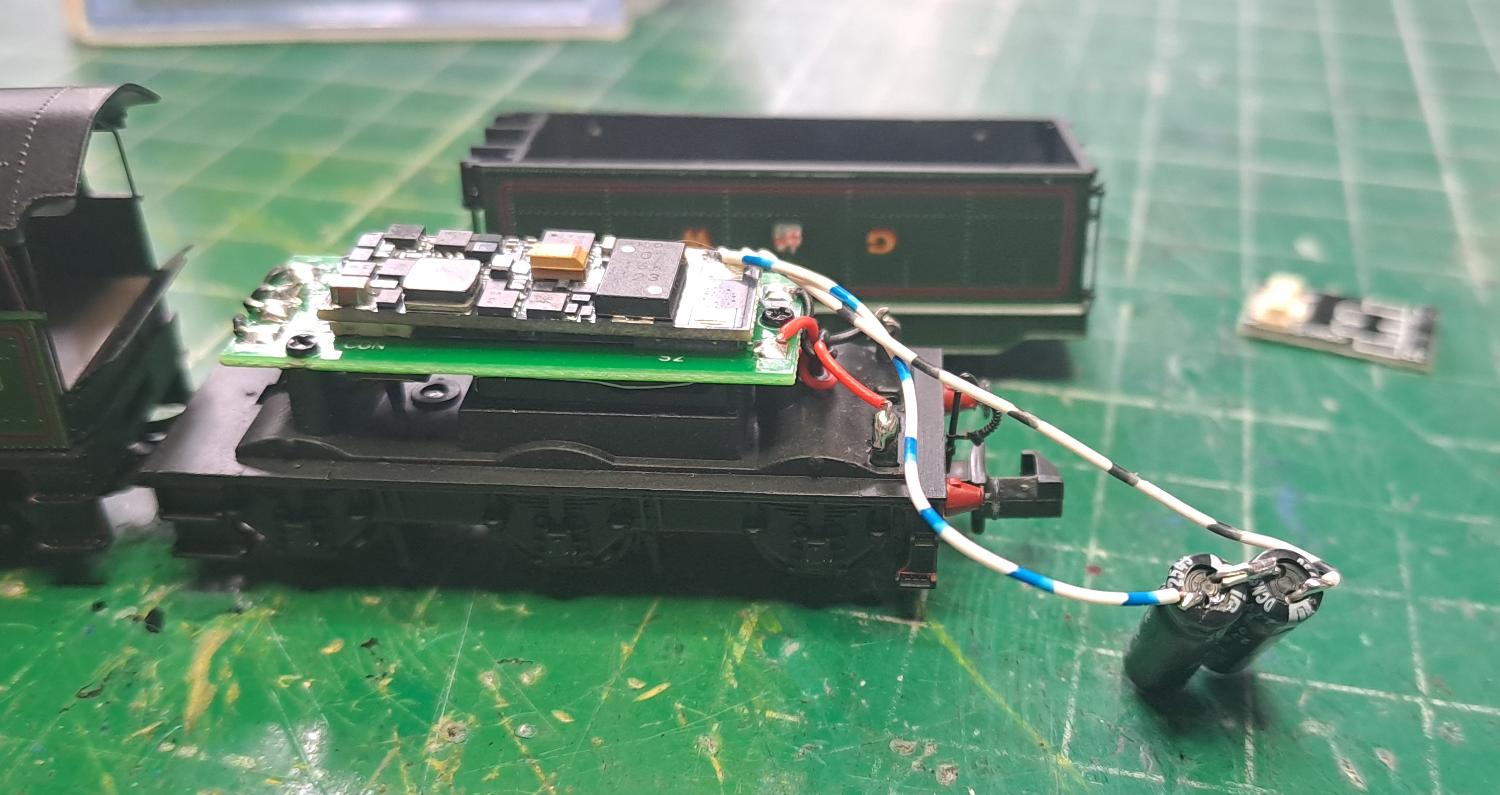

Not sure exactly when, but we have started to see a redesigned Farish GWR Castle model with a factory-speaker built-in, underneath a flat-oriented PCB. This makes the DCC sound installation easier, and also provides just enough space for a pair of mini GoldCaps for stay-alive (hence using the MS581 'G' decoder which comes with these GoldCaps).

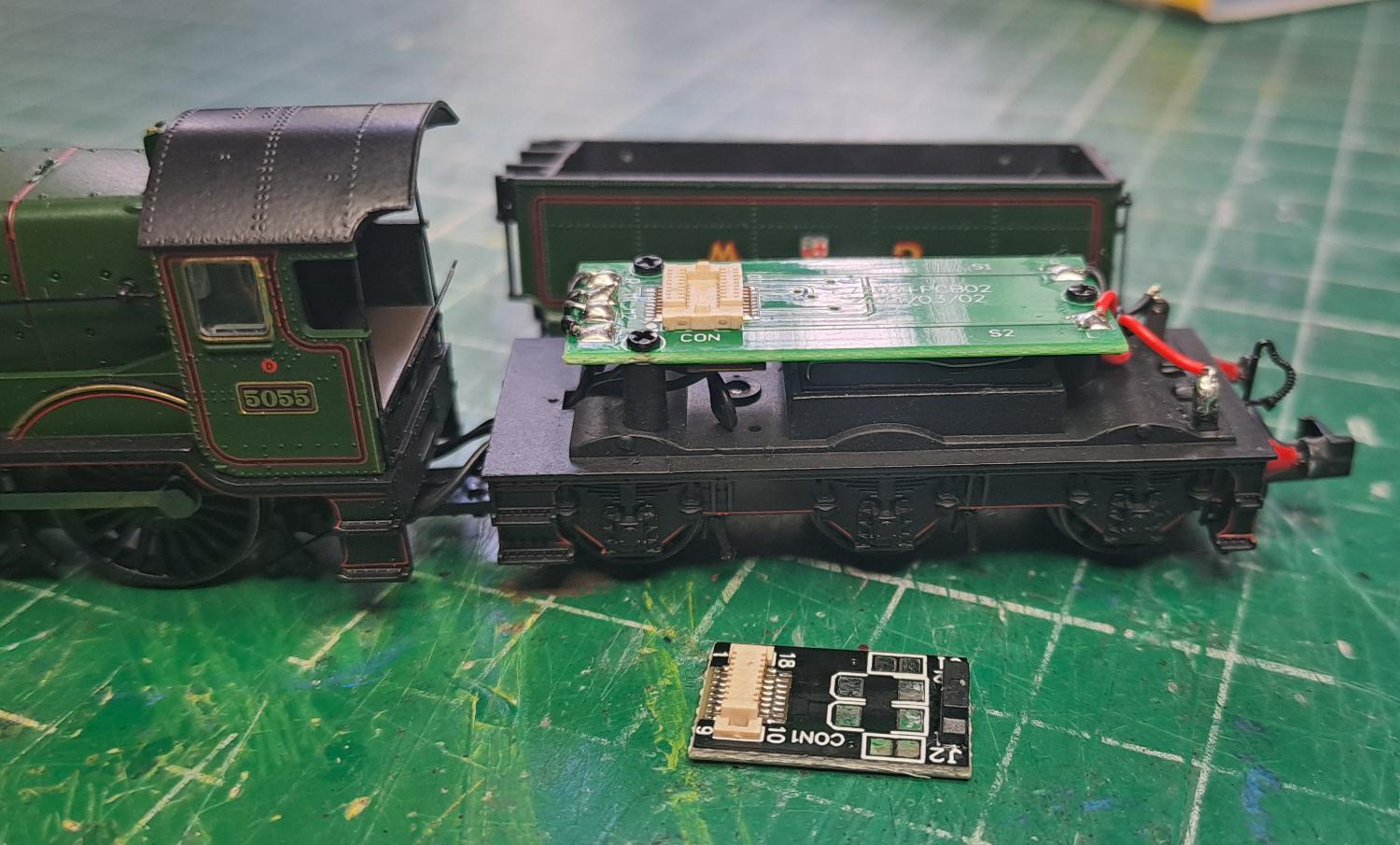

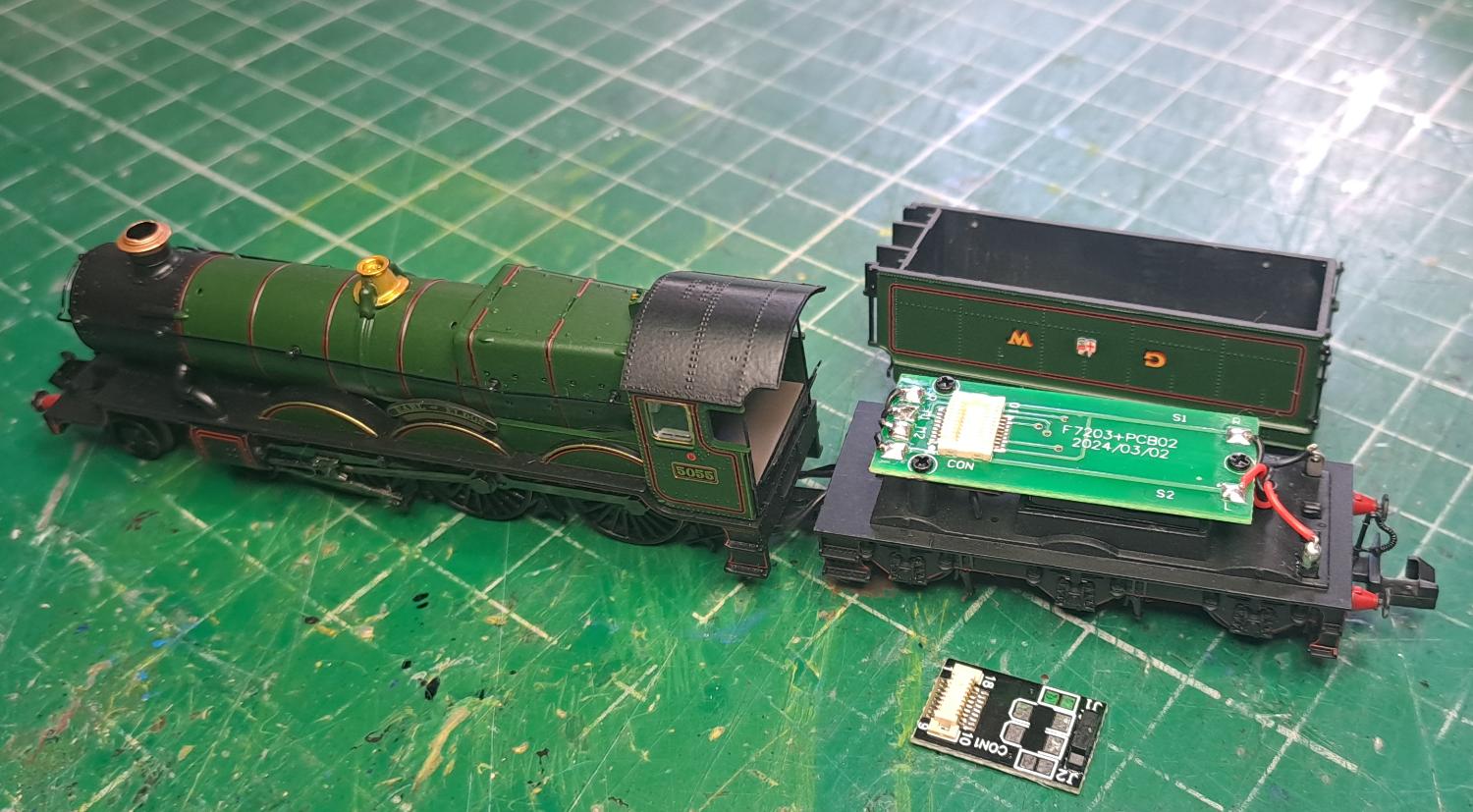

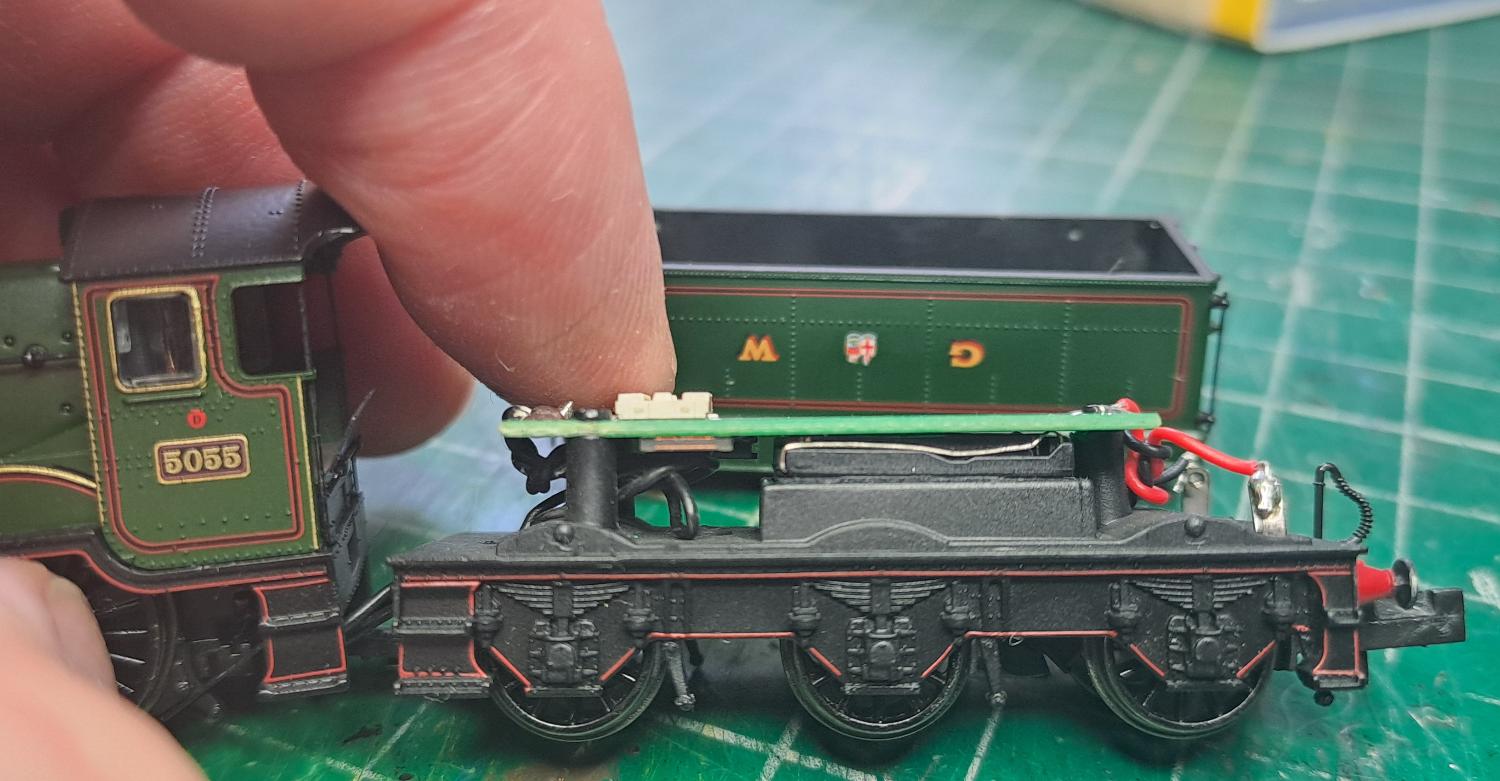

The PCB sits flat in this redesigned model, with a SugarCube type speaker underneath the PCB.

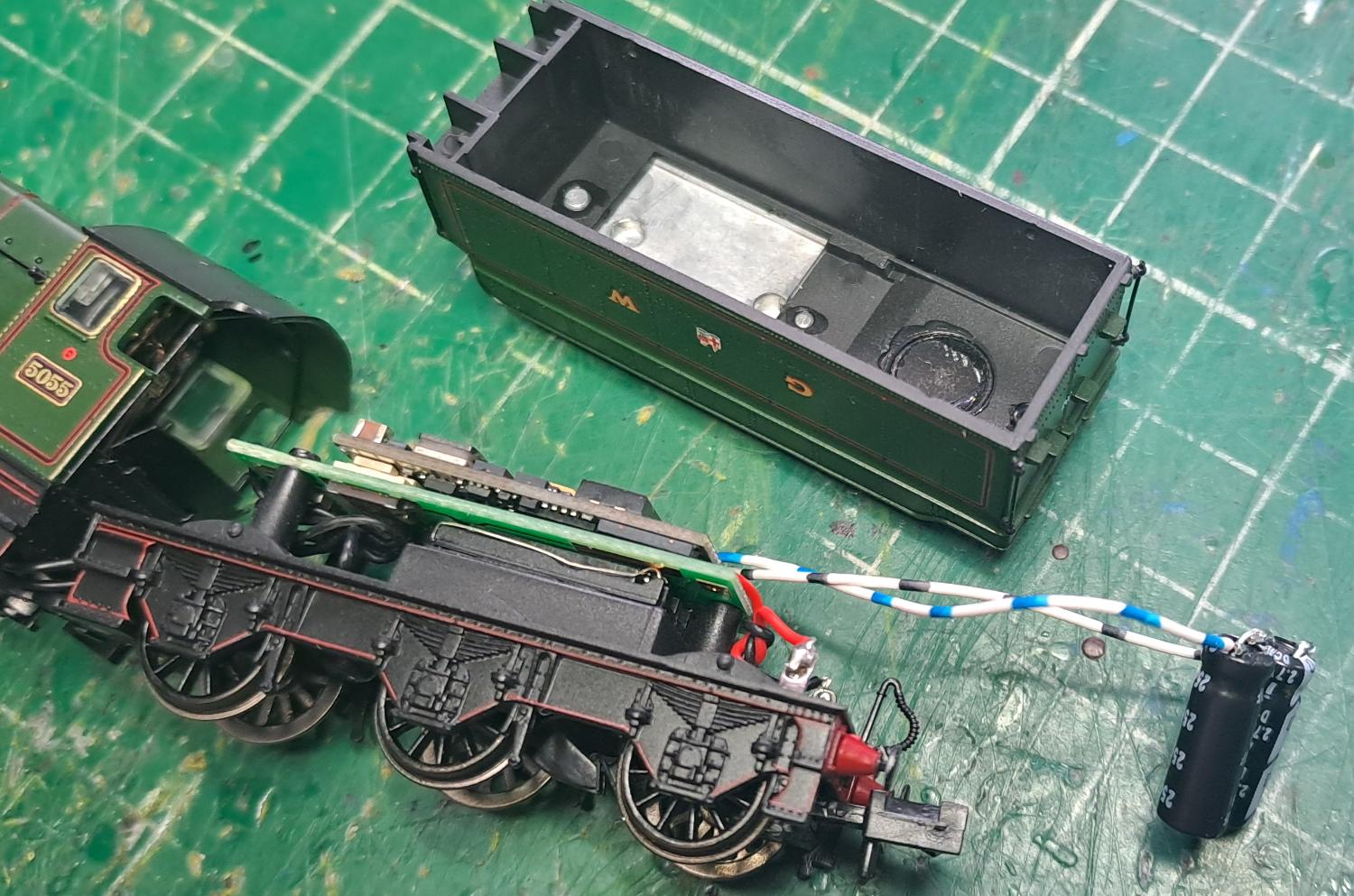

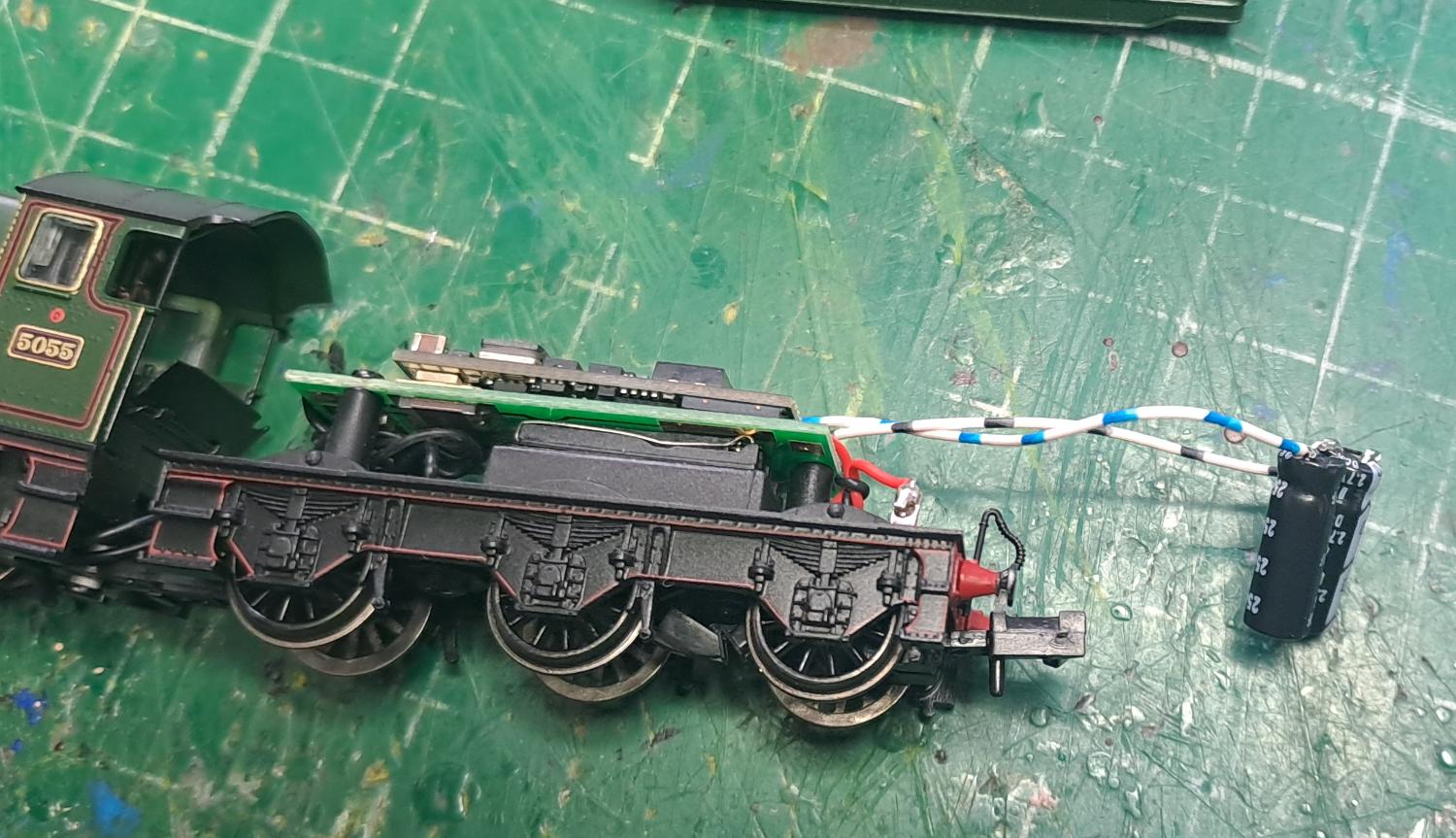

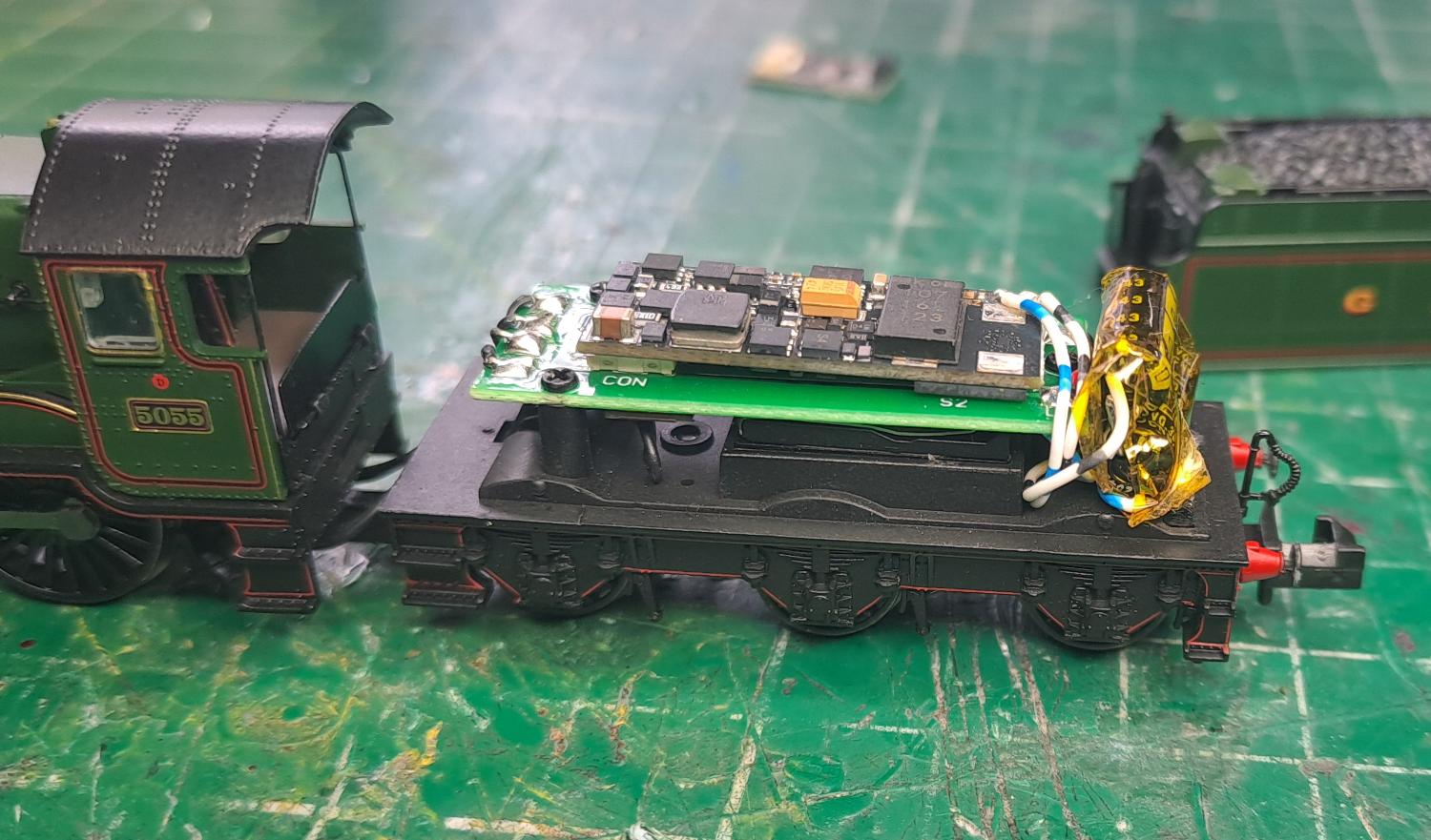

Connect up the pair of GoldCaps neatly (in series), wrap in Kapton tape, and position them at the rear of the tender - it is a tight fit, but they do just go in.
