Dapol O Gauge J94

Kit: MS440; IceCube28X18X07; MGOBLOCK

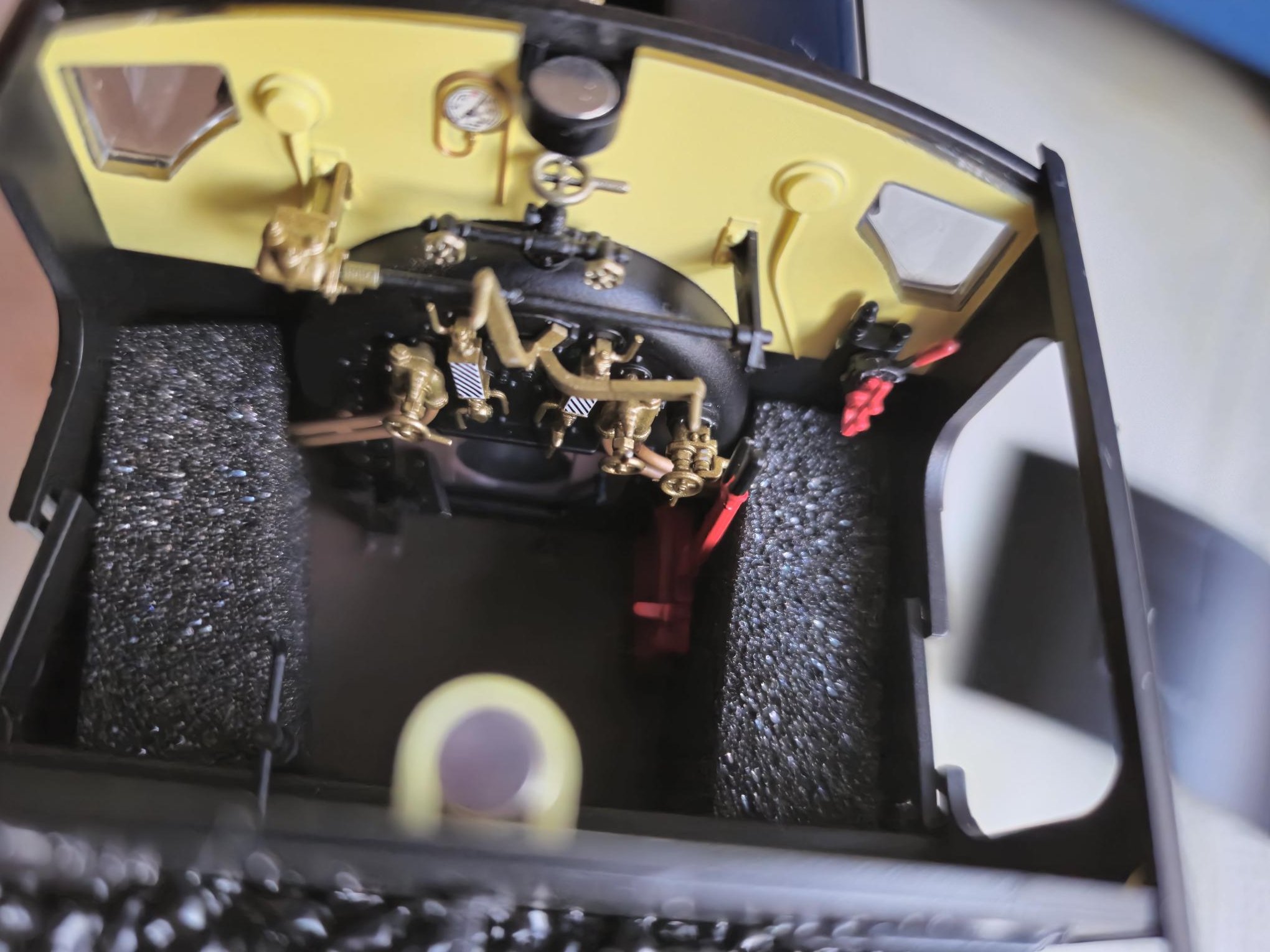

Dapol's J94 in O gauge is another lovely model, like the 14XX and B4 with slide-out PCB for decoder in the boiler. A 21pin MS440 (D or C) plugs in, and you can either go with a pair of 15x11mm Sticky Gasket speakers (this is what the model is designed for), or upgrade to a dual IceCube28X18X07 for even better sound.

Photos courtesy of Pat Beale.

Here is another J94, so some more photos... the kit shown is the same... MS440, IceCube28X18X07 and MGOBLOCK...

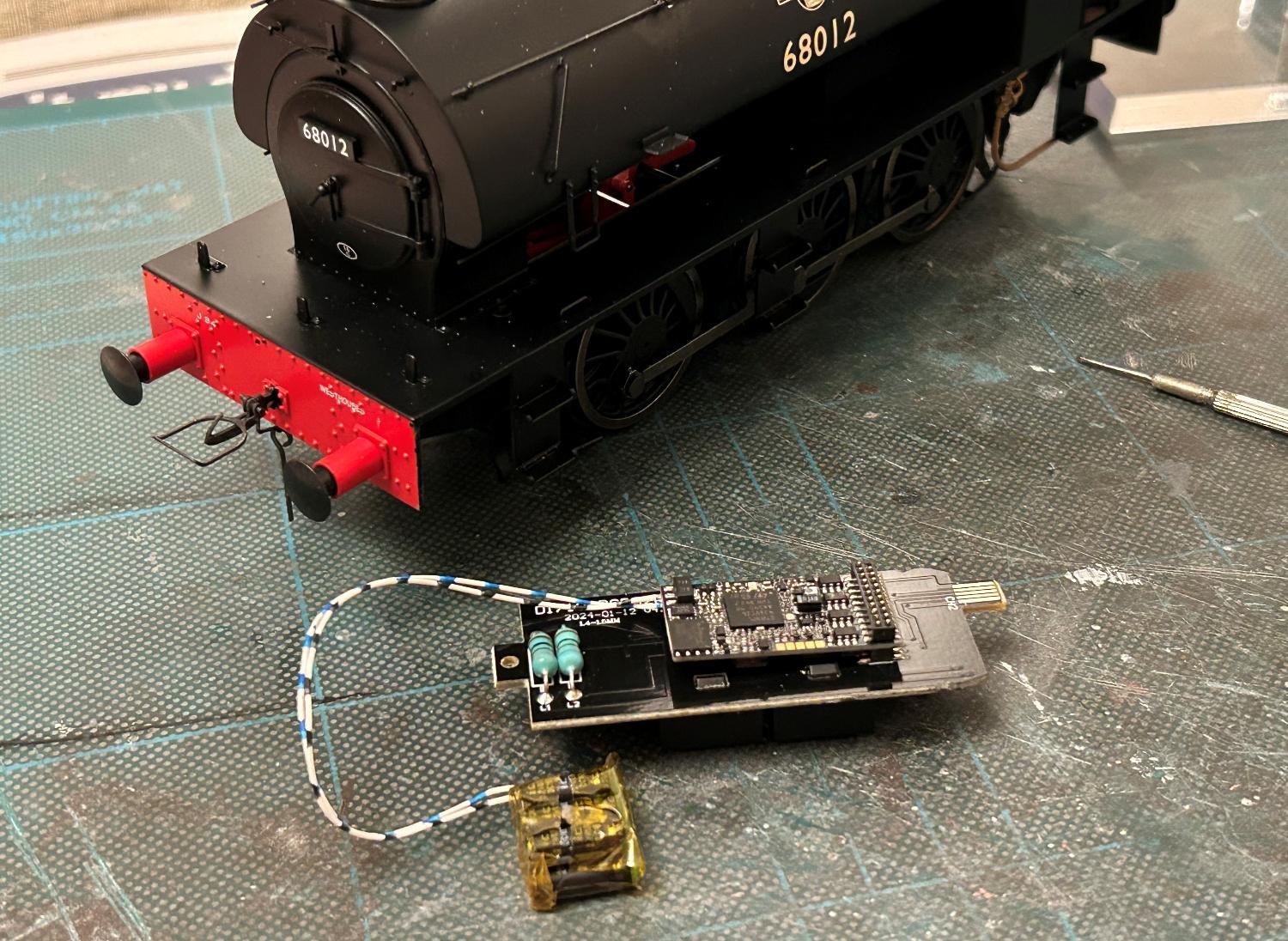

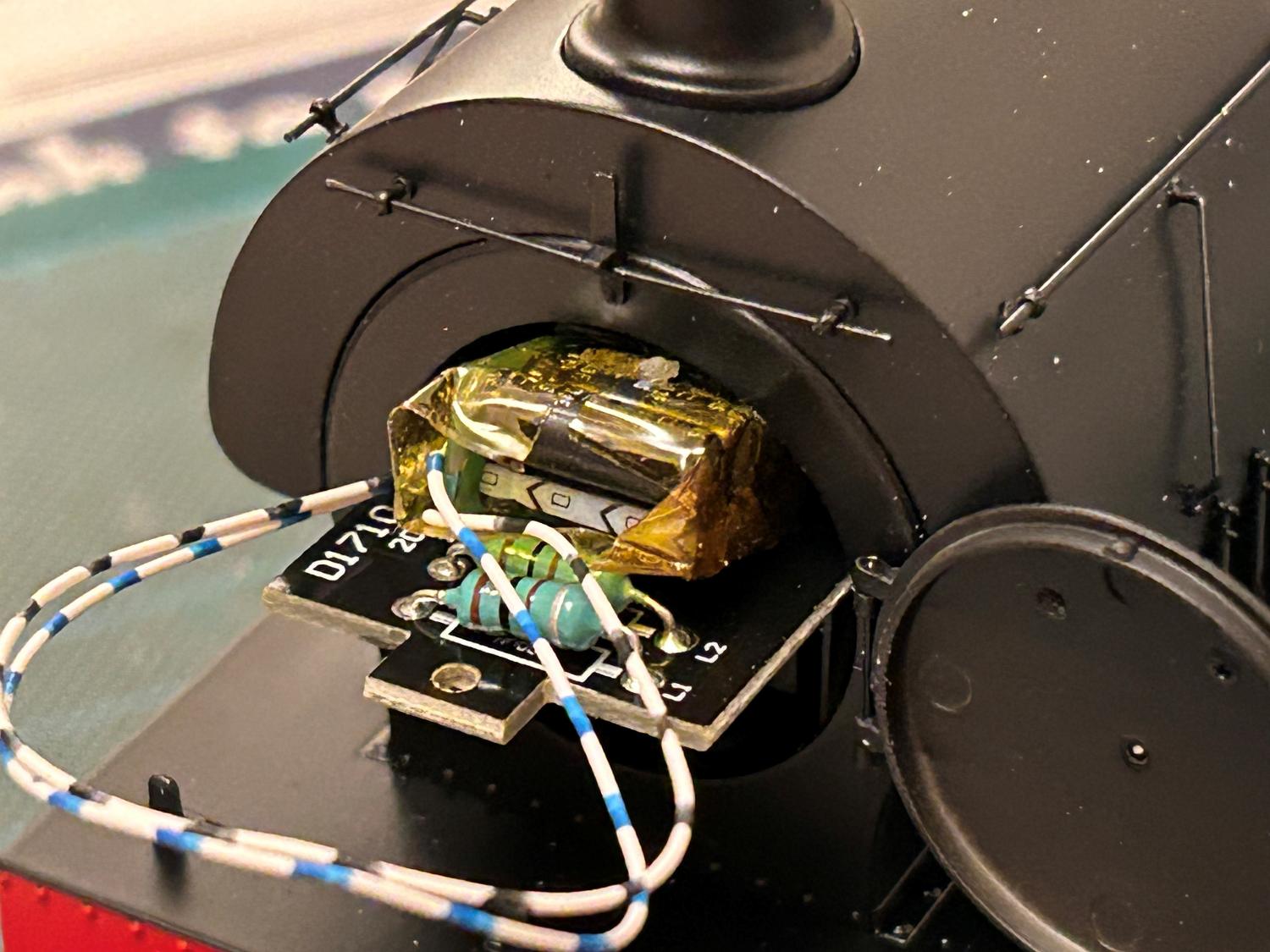

The aperture to slide the PCB through is not quite wide enough to include the stay-alive, so this must be fed in ahead of the decoder.

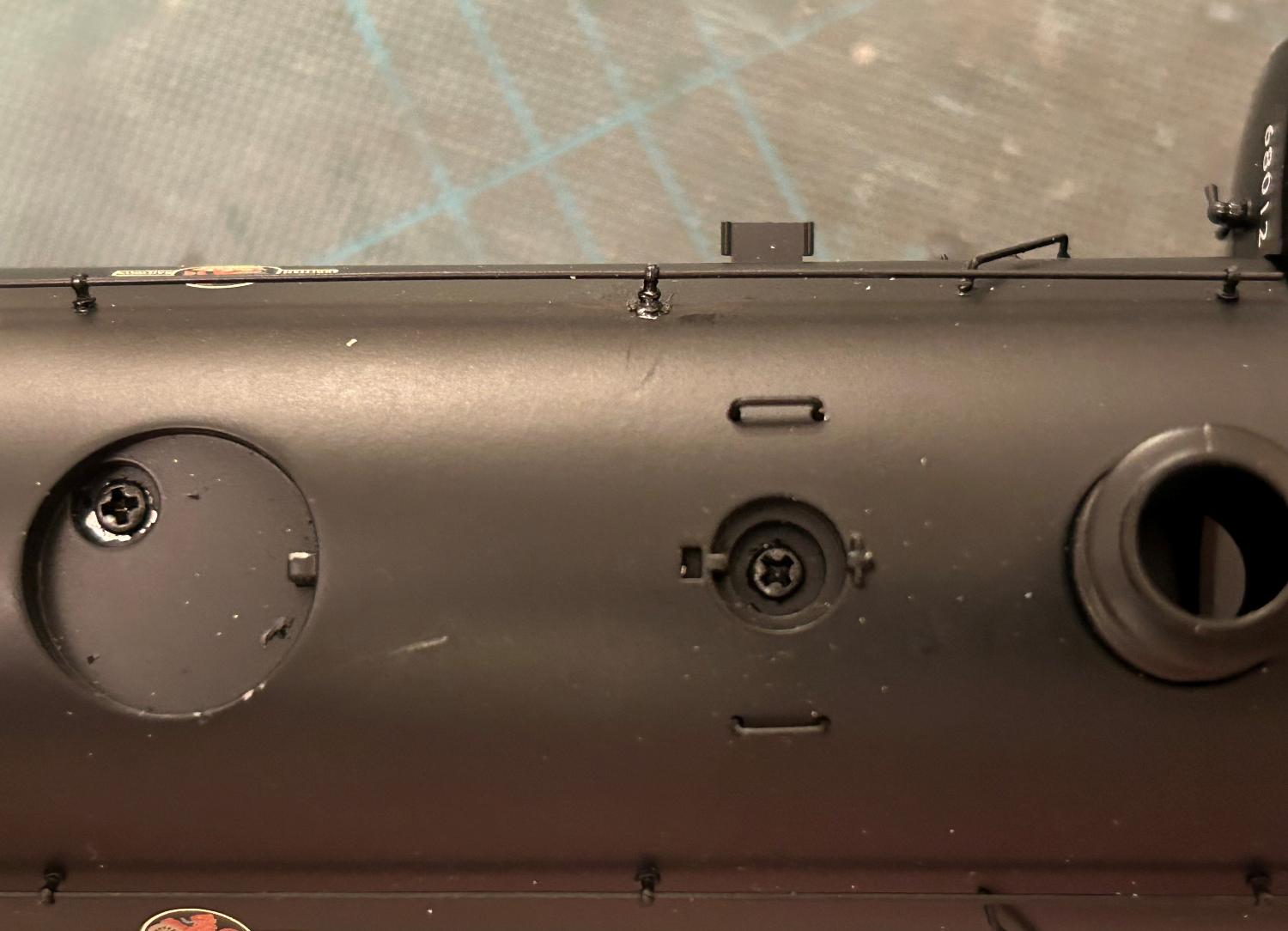

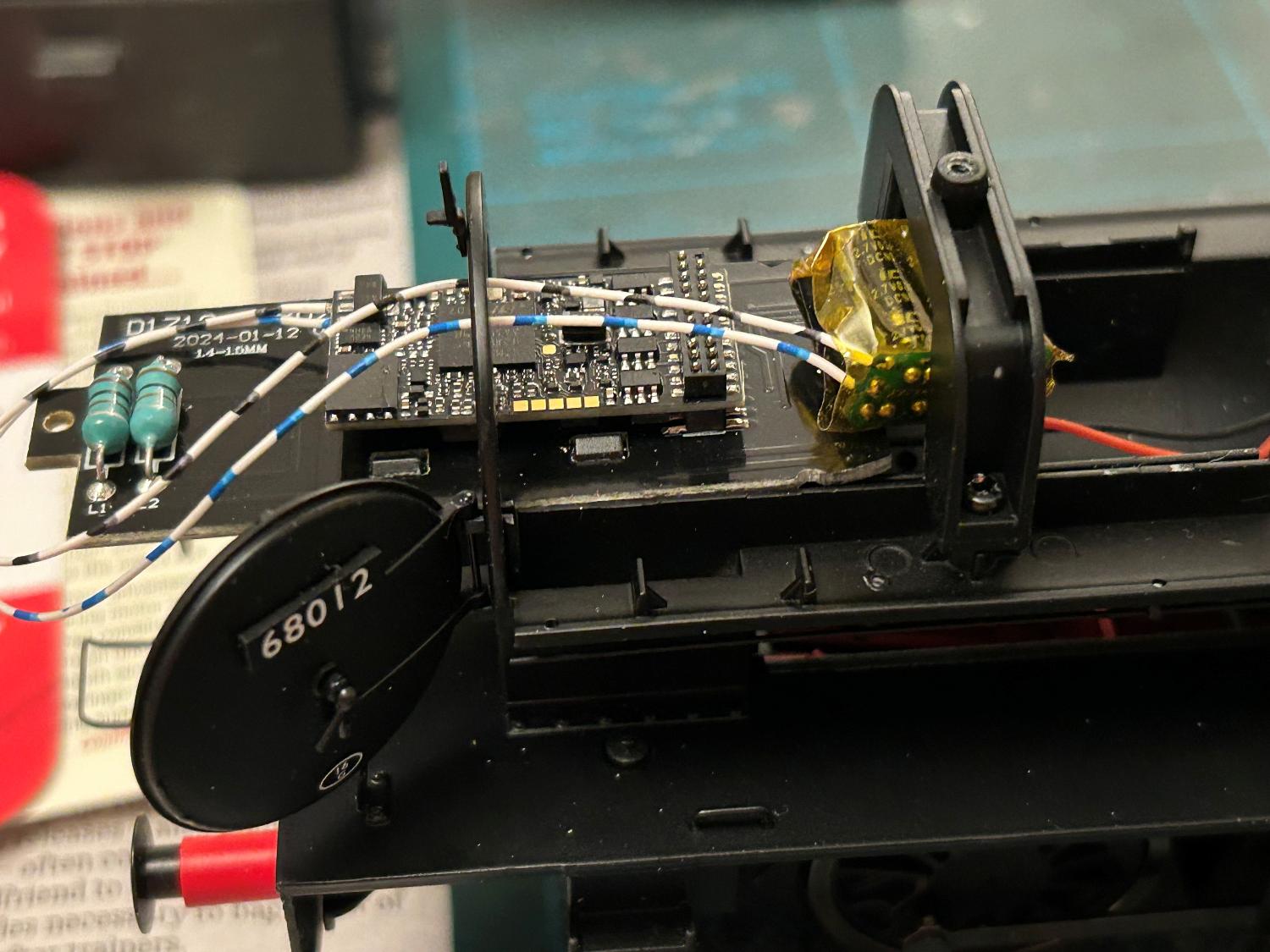

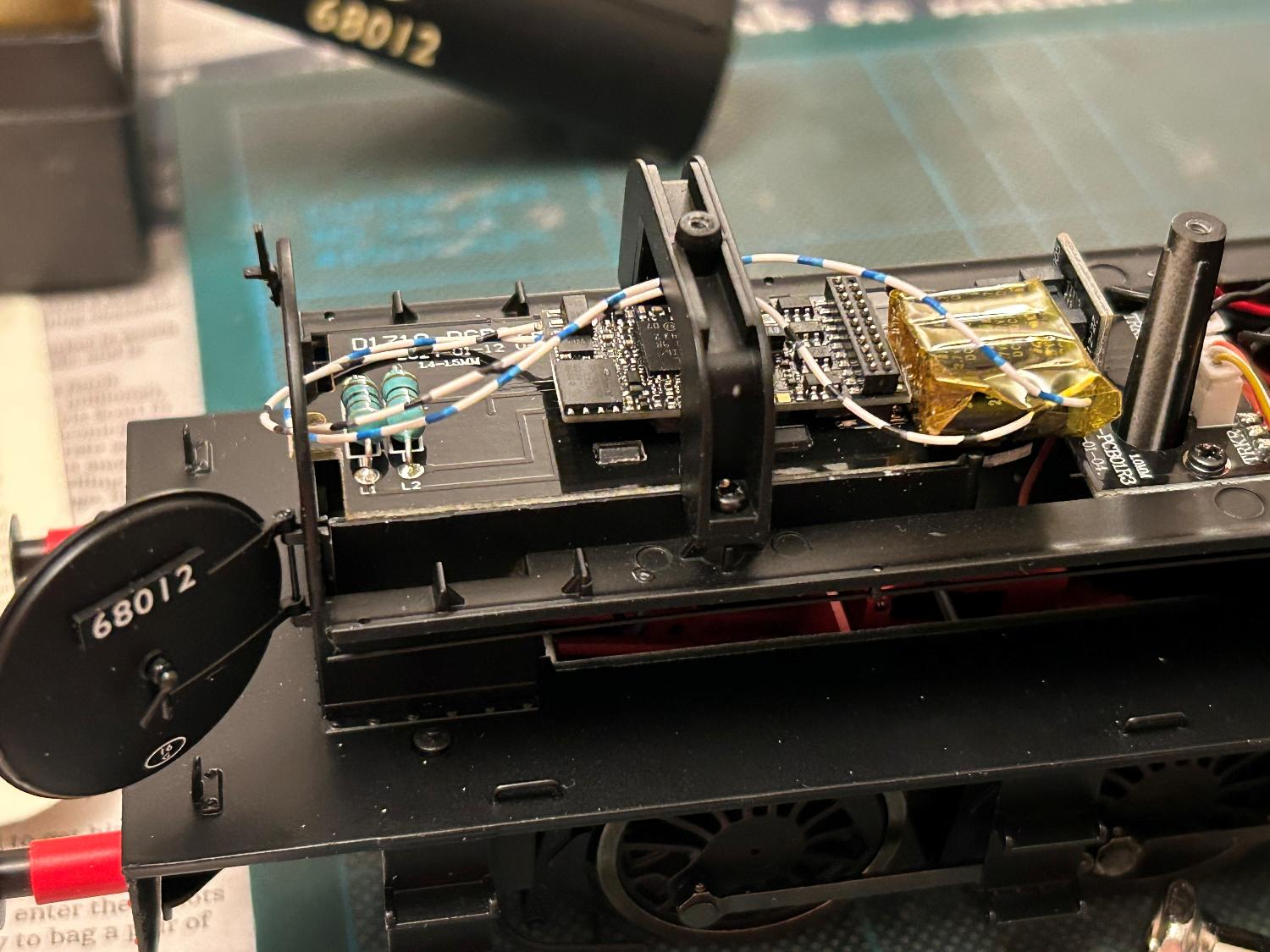

You shouldn't need to take the body off, but we show it here so you can see where the kit ends up internally.

Photos courtesy of Steve Holland
