Bachmann OO Class 42 Warship - 21pin model with no speaker connections

Kit: MX644D or MS440; SugarCube24X15X06 speaker

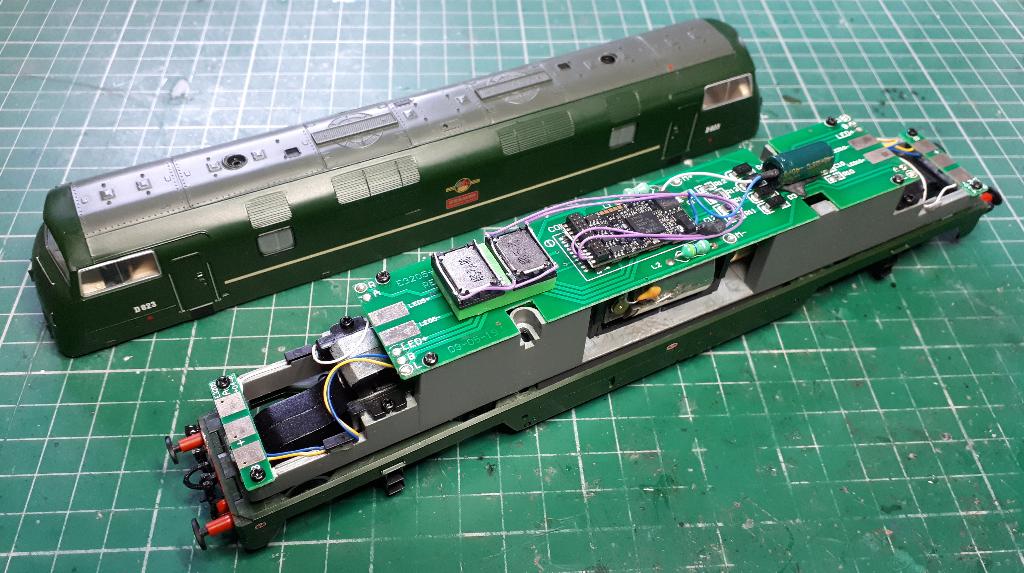

There is precious little space under the roof of this Bachmann Class 42 Warship for a speaker, so we go with a SugarCube24X15X06.

Note that this slightly older 21pin model does not have any solder pads on the PCB for a speaker, so you have to connect the speaker wires either directly to the decoder, or to the feet of the interface in the model - requires good soldering skills, but isn't too difficult.

Here is a similar example, but this time with a pair of single IceCube18X13X7 speakers connected in parallel.

Note how the speakers are attached on the underside of the model's PCB, so just above the bogies. One shot shows a pair of SugarCube7 speakers, the other a pair of slightly larger IceCube18X13X07 speakers.

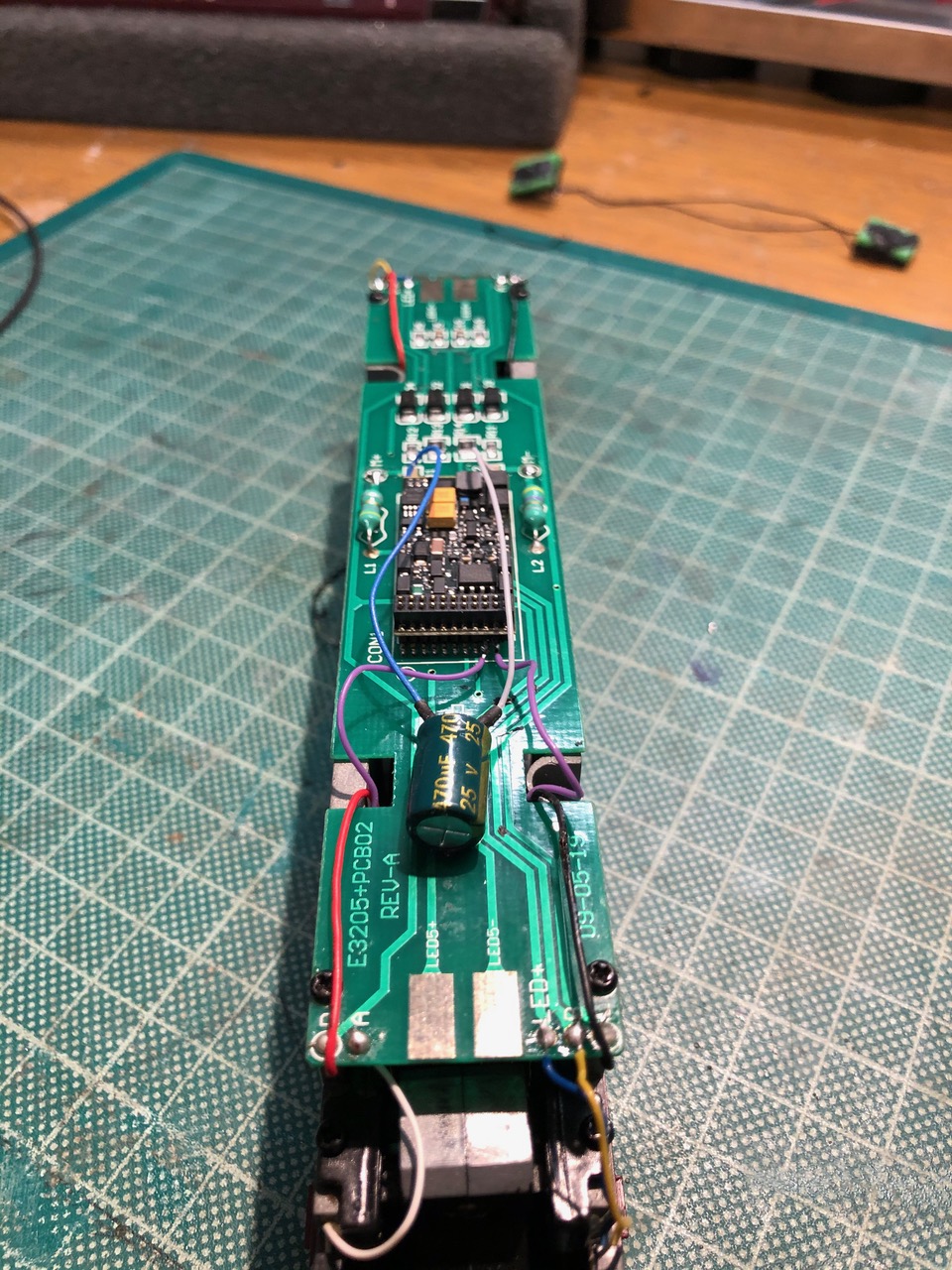

This example, photos supplied courtesy of Eve Ann Wallis
